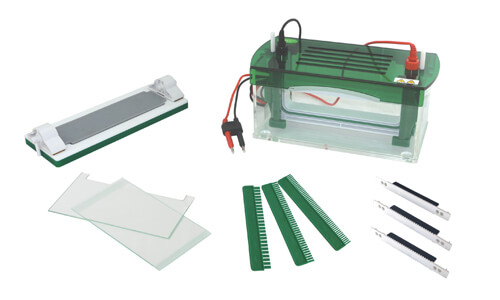

Installation and Start-Up Guide for the YR03430 Rapid Vertical Electrophoresis
The YR03430 Rapid Vertical Electrophoresis system is designed to provide researchers with efficient and reliable separation of proteins. This guide will walk you through the steps necessary for the installation and start-up of the YR03430, including essential setup procedures and key operational insights.
Understanding the YR03430 Electrophoresis System
The YR03430 model is specifically engineered for vertical gel electrophoresis, which is more complex than horizontal setups. This system is predominantly used for protein separation, requiring the denaturation of proteins to their linear form before analysis. With user-friendly features, the YR03430 enables quick setup and operation, making it an essential tool for laboratory applications.
Technical Specifications of YR03430
| Model | YR03430 |
|---|---|
| Glass Plate Size (WxL) | 216x110mm |
| Gel Size (WxL) | 186x95mm |
| Gel Thickness | 1.0mm |
| Gel Quantity | 1~2(pieces) |
| Sample Volume | (1.0mm) 25, 40, 52 wells |
| Buffer Volume | ~1 800ml |
| Dimension | 280x140x136mm |
| Net Weight | 3.2Kg |
Unboxing and Initial Setup
Upon receiving your YR03430, the first step is to unbox the unit carefully. Ensure all components are included by referencing the checklist provided in the documentation. This includes the glass plates, gel casting device, electrodes, and buffer tank.
Once unboxed, place the YR03430 on a sturdy, level surface. It is crucial that the unit is stable to avoid any operational issues. Following the placement, connect the power supply and check that all electrical connections are secure.
Installing the Glass Plate
The installation of the glass plate is a critical step in the setup process. The YR03430 allows for the installation of the glass plate in just 15 seconds without the need for additional tools. Begin by ensuring that the alignment grooves are clean and free from any obstructions.
Carefully slide the glass plate into position until it locks securely in place. It is essential to confirm that the plate is level and aligned correctly as improper installation can lead to inconsistent results during electrophoresis.
Calibrating the System
Once the glass plate is installed, the next step is to calibrate the system. Start by filling the buffer tank with the appropriate buffer solution, ensuring that the pH remains stable throughout the electrophoretic process.
Power on the YR03430 and initiate the calibration sequence. Follow the prompts on the control panel to complete the calibration process. This will ensure that your readings during electrophoresis are accurate and reliable.
Common Setup Mistakes
During the installation and start-up of the YR03430, users may encounter common pitfalls. One frequent mistake is the improper alignment of the glass plate, which can result in uneven gel formation. Always double-check the positioning before filling the tank.
Another common error is using the incorrect volume of buffer solution. Always ensure you adhere to the specified buffer volume to facilitate efficient cooling and maintain pH stability.
Operational Features of YR03430
The YR03430 is equipped with several distinctive features designed to enhance user experience. The gel fabrication device can be positioned without having to move the glass plate, allowing for a seamless transition from gel preparation to electrophoresis.
Additionally, the safety cover has a convenient button design for quick access. The auto-shutoff feature when the cover is removed ensures user safety and prevents overheating during operation.
Frequently Asked Questions
What is the significance of the glass plate size in the YR03430?
The glass plate size of 216x110mm is crucial for accommodating the gel dimensions used in protein separation, ensuring effective resolution and accurate results during electrophoresis.
How do I maintain the YR03430 for long-term use?
Regular maintenance includes cleaning the glass plates after each use, checking electrodes for wear, and verifying that buffer solutions are prepared correctly before each run to ensure optimal performance.
What are the typical applications for the YR03430?
The YR03430 is typically used in laboratories specializing in biochemistry and molecular biology for the separation of proteins, especially in research settings focused on protein composition analysis.
What should I do if I encounter an error code on the YR03430?
Refer to the user manual for a detailed explanation of error codes and troubleshooting. Common solutions often involve checking connections and ensuring that the glass plate is properly seated.
How do I know if my YR03430 requires calibration?
If you notice inconsistent results or if the system has not been used for an extended period, it is advisable to perform a calibration check to ensure that the measurements are accurate.
Can the YR03430 be used for both DNA and protein electrophoresis?
The YR03430 is primarily designed for protein electrophoresis; however, with appropriate gel formulations, it may also be adapted for DNA applications.
What are the recommended safety precautions while using the YR03430?
Always wear appropriate personal protective equipment, ensure that the workspace is organized, and be cautious while handling buffer solutions and electrical components of the system.
