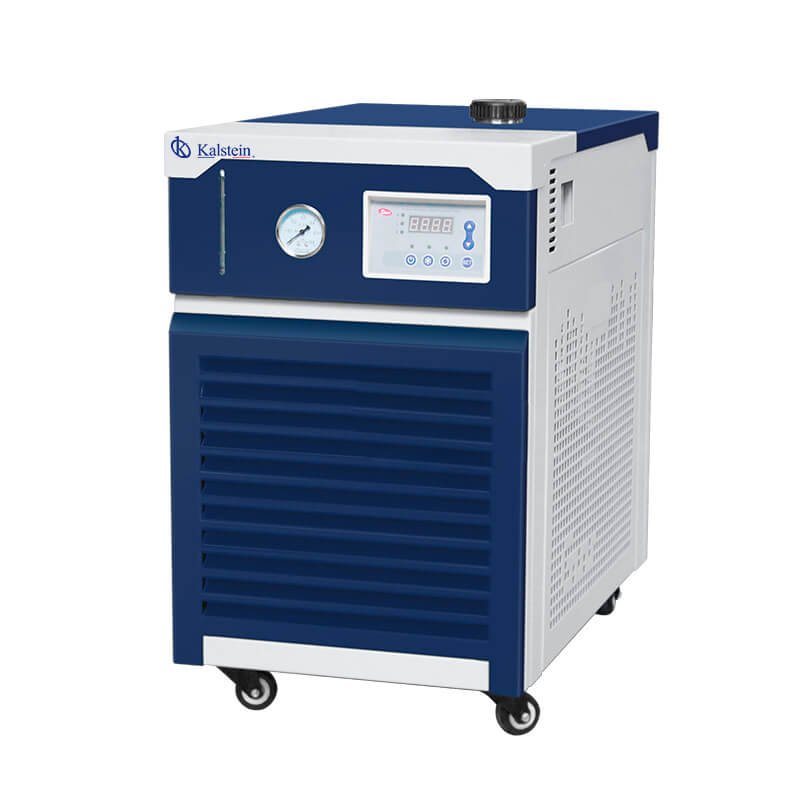

Installation and Startup Guide for the YR02302 Recirculation Chiller
The YR02302 Recirculation Chiller is designed specifically for laboratory rotary evaporators. Its compact structure and small footprint make it suitable for placement on a workbench or floor. This guide aims to provide comprehensive instructions on the installation and startup processes of the YR02302, ensuring that you maximize its performance and reliability.
Understanding the YR02302 Recirculation Chiller
The YR02302 is engineered for efficient cooling in laboratory settings, particularly with rotary evaporators. Its robust construction includes components made from 304 stainless steel and macro-molecular anti-corrosive materials, ensuring durability and longevity. This chiller operates within a temperature range of -10°C to 25°C, making it versatile for various cooling applications.
Technical Specifications of the YR02302
| Model | YR02302 | YR02303 | YR02304 | YR02305 |
|---|---|---|---|---|
| Operating Temperature Range | -10-25°C | |||
| Temperature Stability | ± 2°C | |||
| Power Supply | 220-240V, 50Hz | 3-380V, 50Hz | ||
| Cooling Liquid Filling Volume (L) | 10 | 17 | 30 | 40 |
| Cooling Capacity (W) | 1000 @ 15°C | 2000 @ 15°C | 3000 @ 15°C | 6000 @ 15°C |
| Refrigerant | R134a | |||
| Circulation Pump Flow Rate | 7L/min | 16L/min | ||
| Pressure (bar) | 1-10 | |||
| Pipe Connection Size | 1/2″ | |||
| Dimensions (mm) | 435W x 690D x 720H | 465W x 690D x 820H | 495W x 760D x 860H | 650W x 1055D x 1070H |
| Net Weight (kg) | 73 | 86 | 108 | 195 |
Unboxing and Initial Setup
Upon receiving the YR02302 chiller, it is crucial to perform an unboxing checklist to ensure all components are intact. Check for the following items:
- Recirculation Chiller YR02302
- User Manual
- Power Cable
- Connecting Hoses
- Warranty Card
Once verified, you can proceed to the installation setup:
- Select a level surface for placement.
- Ensure sufficient clearance for ventilation around the unit.
- Connect the power supply following the specifications outlined in the technical specifications.
- Attach the inlet and outlet hoses securely to prevent leaks.
Power-Up Sequence
Once the installation is complete, follow these steps to power up the YR02302:
- Check all connections (power, hoses).
- Ensure the chiller's cooling liquid is filled to the appropriate level.
- Turn on the main power switch.
- Set the desired temperature on the control panel.
- Allow the chiller to run for a few minutes before initiating any tests.
Common Installation Mistakes
During installation and startup, avoid these common mistakes to ensure optimal functionality:
- Failing to secure hose connections, which can lead to leaks.
- Incorrect power supply settings that could cause electrical issues.
- Insufficient clearance around the chiller, affecting cooling efficiency.
Specifications Review
Understanding the specifications of the YR02302 is essential for effective operation. The chiller's capacity, operating temperature range, and refrigerant type are critical for ensuring compatibility with laboratory processes. The YR02302 uses R134a refrigerant, which is efficient and environmentally friendly.
Frequently Asked Questions
What is the optimal operating temperature for the YR02302?
The optimal operating temperature range for the YR02302 is between -10°C to 25°C, providing flexibility for various laboratory applications.
How do I troubleshoot if the YR02302 does not power on?
If the unit does not power on, check the power connections, ensure the circuit is functioning, and verify that the power switch is engaged. If issues persist, consult the user manual for further diagnostics.
What maintenance is recommended for the YR02302?
Regular maintenance includes checking refrigerant levels, inspecting for leaks, and cleaning filters. Review the user manual for specific intervals and procedures.
Can the YR02302 be used with any rotary evaporator model?
The YR02302 is compatible with most rotary evaporator models, but it is advisable to consult the manufacturer's specifications to ensure optimal performance.
What safety precautions should be taken when using the YR02302?
Always operate the chiller in a well-ventilated area, keep the unit clean, and follow the power specifications to prevent accidents. Additionally, ensure that all connections are secure to avoid leaks.
How can I request technical support for the YR02302?
Technical support can be requested through the manufacturer's customer service channels, which are typically available in the user manual or warranty documentation.
What is the lifespan of the YR02302 under normal operating conditions?
The expected lifespan of the YR02302 under normal operating conditions is typically several years, depending on maintenance and usage patterns. Regular servicing can extend its operational life.
