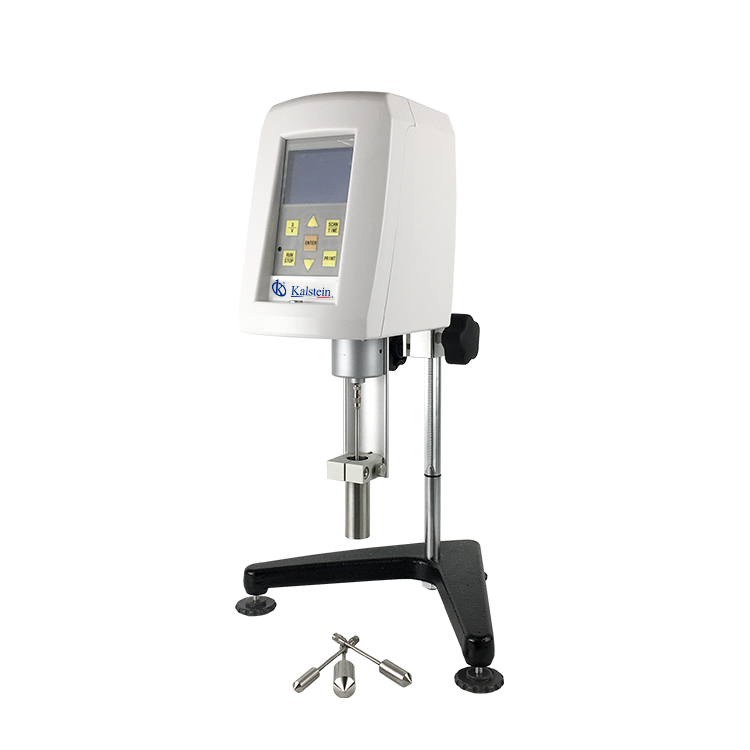

Installation and Setup Guide for the YR05865 Viscometer for Small Samples
The YR05865 Viscometer is a state-of-the-art device designed for measuring the viscosity of small liquid samples accurately. This guide aims to provide detailed instructions for the installation and initial setup of the YR05865, ensuring that users can maximize its performance and reliability.
Unboxing and Initial Inspection
Upon receiving your YR05865 Viscometer, it is essential to carefully unbox and inspect the unit to confirm all components are present and undamaged. The unboxing checklist should include:
- YR05865 Viscometer Unit
- Temperature Probe
- Adapters and Connectors
- Base Plate
- Top-Bottom Frame
- User Manual in English
Verify that no parts were damaged during shipping. If any components are missing or damaged, contact support for resolution immediately.
Site Requirements and Environmental Conditions
Before setting up the YR05865, ensure that your laboratory meets the following site requirements:
| Condition | Requirements |
|---|---|
| Temperature Range | 15°C to 30°C |
| Humidity | 30% to 70% RH |
| Power Supply | 220V-240V, 50Hz |
| Ventilation | Ensure adequate airflow around the unit |
| Vibration | Stable surface, minimal vibrations |
Make sure to prepare the site according to the above requirements to ensure optimal performance and accuracy.
Anchoring and Leveling the Viscometer
Correct installation of the YR05865 involves proper anchoring and leveling. Follow these steps:
- Place the viscometer on a flat, stable surface.
- Use a spirit level to check that the device is perfectly horizontal.
- If necessary, adjust the leveling feet until the unit is stable and level.
Proper leveling is critical for obtaining accurate viscosity measurements.
Power-Up Sequence
After ensuring that the unit is properly placed and leveled, follow this power-up sequence:
- Connect the power cable to a suitable electrical outlet.
- Press the power button located on the front panel of the YR05865.
- Wait for the startup sequence to complete, which may take a few moments.
Once powered up, the display should show the main interface, ready for the next setup steps.
Initial Calibration and Validation
To ensure the accuracy of the YR05865, it is crucial to perform an initial calibration and validation:
- Prepare a standard viscosity fluid with a known viscosity.
- Follow the on-screen prompts to input the known viscosity value.
- Run the calibration test and compare the readings with the known viscosity.
- If discrepancies arise, adjust the calibration settings as instructed in the manual.
Calibration should be performed periodically to maintain measurement accuracy.
Common Setup Mistakes and Troubleshooting
While setting up the YR05865, users may encounter several common mistakes:
| Mistake | Description | Solution |
|---|---|---|
| Improper Leveling | Device is not leveled correctly leading to inaccurate measurements. | Re-level the unit using a spirit level. |
| Incorrect Power Supply | Using an incompatible voltage can damage the device. | Ensure the power supply matches the specifications. |
| Missing Calibration | Failure to calibrate can lead to erroneous readings. | Perform calibration before first use and regularly afterward. |
Technical Specifications of YR05865
| Model | YR05865 |
|---|---|
| Measurement Range | 1-2,000,000 Cps/Mpa.s |
| Spindles | 0, 1, 2, 3, 4 |
| Rotation Speed | 0.3 - 60 rpm/min |
| Measurement Accuracy | ±2% |
| Repeatability | ±1% |
| Liquid Density | Yes (g/cm3) |
| Viscosity Kinematic | Yes (mm2/s) |
Frequently Asked Questions
What types of liquids can the YR05865 measure?
The YR05865 is designed to measure the viscosity of Newtonian and non-Newtonian fluids. This includes a wide range of liquids used in various industries such as food, pharmaceuticals, and cosmetics.
How do I maintain the YR05865 Viscometer?
Regular maintenance involves cleaning the unit after each use, checking for any wear on the spindles, and performing periodic calibration. Ensure that the device is stored in a dry, stable environment when not in use.
What should I do if the YR05865 displays an error code?
Refer to the user manual for a detailed list of error codes. Most error codes indicate specific issues that can often be resolved by following troubleshooting steps outlined in the manual.
Can I use the YR05865 for high-temperature liquids?
The YR05865 is designed for a specific temperature range. For high-temperature applications, ensure the liquid's temperature does not exceed the device's operational limits to avoid damage.
Is there a warranty for the YR05865?
Yes, the YR05865 comes with a standard warranty covering manufacturing defects. Please refer to the warranty terms in the user manual for detailed information.
How can I request additional accessories for the YR05865?
To request additional accessories compatible with the YR05865, contact your supplier or sales representative directly, or check the comprehensive catalog provided by the manufacturer.
Where can I find the user manual for the YR05865?
The user manual is included in the packaging upon unboxing the unit. Additionally, digital copies can often be found on the manufacturer's support page or by contacting customer service.
