Installation Requirements for the YR05284-1 High Temp Box Muffle Furnace

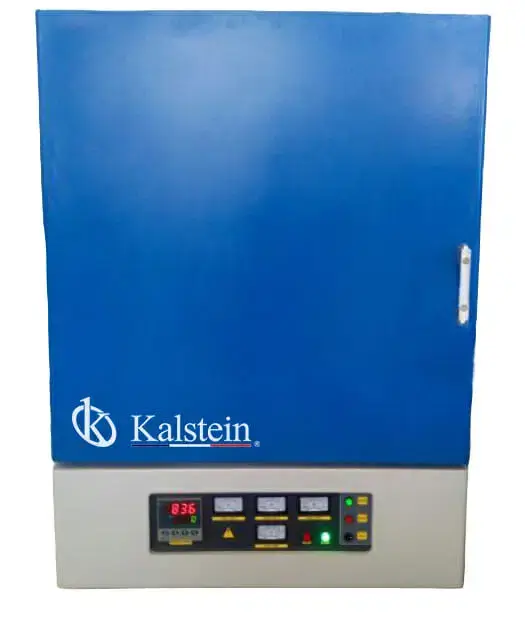

The YR05284-1 High Temp Box Muffle Furnace is known for its exceptional performance in various laboratory applications. To maximize its efficacy and lifespan, it is crucial to understand the specific installation requirements and environmental conditions necessary for optimal operation. This article delves into the essential criteria that must be met when installing the YR05284-1, including site preparation, ambient conditions, and safety protocols.
Understanding the Environmental Conditions for YR05284-1
The YR05284-1 operates effectively within certain environmental parameters. Failing to adhere to these can result in suboptimal performance or damage to the unit. The primary environmental conditions include temperature range, humidity levels, and electrical specifications.
Temperature and Humidity Requirements
For optimal functioning, the installation site should maintain a stable ambient temperature between 10°C and 30°C. Humidity levels should ideally not exceed 70%, as excessive moisture can affect the unit's electronic components and overall functionality.
Electrical Specifications
The YR05284-1 requires a power supply of 380 V, either three-phase or single-phase, at a frequency of 50/60 Hz. Ensuring that these electrical requirements are met is critical to prevent electrical disturbances and ensure consistent performance.
Site Preparation Checklist for YR05284-1 Installation
Proper site preparation is fundamental for the successful installation of the YR05284-1. The following checklist highlights the key elements to consider:
| Checklist Item | Description |
|---|---|
| Clearance Space | Ensure at least 30 cm of clearance around the unit for ventilation and accessibility. |
| Stable Surface | Install the furnace on a level and sturdy surface capable of bearing its weight (approximately 480 kg). |
| Ventilation | Establish adequate ventilation to dissipate heat and prevent overheating. |
| Electrical Setup | Verify the electrical circuitry and ensure that a dedicated circuit is available for the furnace. |
| Safety Equipment | Have necessary safety equipment such as gloves, goggles, and fire extinguishers readily available. |
Installation and Setup Process for YR05284-1
The installation of the YR05284-1 involves several key steps to ensure proper functionality. Follow this procedure carefully:
Unboxing and Initial Setup
Upon receiving the YR05284-1, inspect the unit for any damages during transit. Carefully remove it from the packaging, checking for all included accessories such as spare heaters, crucible tongs, and operation manuals.
Anchoring and Leveling
Place the furnace in the predetermined location and ensure it is leveled. Use a spirit level for accuracy. Secure the unit to prevent any movement during operation.
Power-Up Sequence
Connect the furnace to the power supply, ensuring that all electrical connections are secure. Power on the unit and check for any error codes that may indicate installation issues.
Common Installation Mistakes to Avoid
While setting up the YR05284-1, several common mistakes can undermine its operation:
- Inadequate Ventilation: Failing to provide sufficient ventilation can lead to overheating.
- Neglecting Electrical Specifications: Connecting to an incorrect power supply can damage the unit.
- Improper Positioning: Installing on an unstable surface can result in misalignment and operational issues.
Technical Specifications of YR05284-1
Here is a detailed technical data table for the YR05284-1, summarizing its key specifications:
| Specification | Details |
|---|---|
| Model | YR05284-1 |
| Nominal Voltage | 380 V, three-phase or single-phase, 50/60 Hz |
| Power | 18 kW |
| Chamber Size | 400 x 400 x 400 mm, 64 L |
| Max Temperature | 1700 °C |
| Continuous Working Temperature | 1600 °C |
| Max Heating Rate | 30 °C/min; suggested rates vary based on temperature tiers |
| Temperature Controller | PID automatic control with self-tuning; 30 programmable segments |
| Temperature Accuracy | +/- 1 °C |
| Heating Element | MoSi2 heater |
| Thermocouple | Type B |
| Standard Parts | 2 spare heaters, 1 crucible tongs, 1 pair of asbestos gloves, user manual |
Frequently Asked Questions
What are the key installation requirements for the YR05284-1?
The key installation requirements include maintaining a stable ambient temperature between 10°C and 30°C, ensuring humidity levels below 70%, and providing a dedicated electrical circuit of 380 V, either three-phase or single-phase.
How much clearance is required around the YR05284-1?
It is essential to have at least 30 cm of clearance around the YR05284-1 to facilitate proper ventilation and accessibility for maintenance.
What common mistakes should be avoided during the installation of the YR05284-1?
Common mistakes include inadequate ventilation, neglecting the specified electrical requirements, and placing the unit on an unstable surface.
How can I ensure proper ventilation for the YR05284-1?
Ensure that the installation area has adequate airflow and avoid obstructions near the exhaust vents of the furnace.
What safety equipment should be present during the installation of the YR05284-1?
Safety equipment should include gloves, goggles, and fire extinguishers to address any potential hazards during operation.
Can the YR05284-1 be installed in a humid environment?
It is not recommended to install the YR05284-1 in environments where humidity exceeds 70%, as this could negatively impact electronic components.
How do I check for error codes during the power-up sequence of the YR05284-1?
After connecting the YR05284-1 to the power supply, observe the display panel for any error codes that may indicate installation issues and refer to the user manual for troubleshooting guidance.
