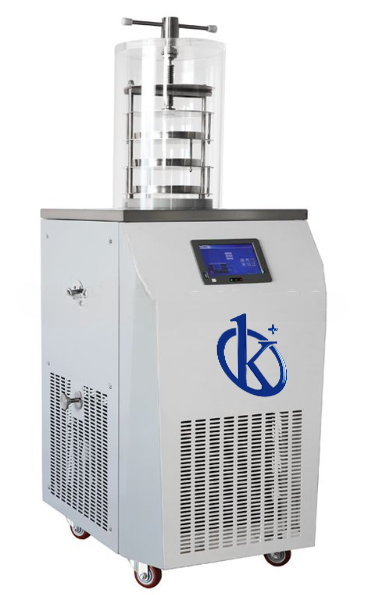

Installation Requirements and Environmental Conditions for the YR05199 Freeze Dryer
The YR05199 Vertical Electric Heating Laboratory Freeze Dryer is a sophisticated piece of laboratory equipment that plays a crucial role in various fields, including medicine, pharmacy, biological research, and food preservation. Understanding the installation requirements and environmental conditions for this model is essential for achieving optimal performance and ensuring the longevity of the equipment.
Understanding the YR05199 Freeze Dryer
The YR05199 is designed to effectively remove moisture from samples through the process of freeze-drying, which preserves the biochemical characteristics of the materials. Before diving into installation, it is vital to grasp how this model operates and the specific conditions it requires.
This freeze dryer operates under vacuum conditions to lower the freezing point and subsequently remove water through sublimation. With a focus on electric heating, it guarantees uniform temperature control during the drying process.
Installation Requirements
Proper installation of the YR05199 requires adherence to specific guidelines to ensure safe and efficient operation. Below is a checklist of crucial installation requirements:
| Requirement | Details |
|---|---|
| Space Clearance | At least 20 cm of clearance on all sides for ventilation and maintenance access. |
| Power Supply | Ensure a stable power supply of 1800W; voltage must fit the equipment specifications. |
| Temperature Control | Room temperature should be maintained between -40°C to +60°C for optimal performance. |
| Humidity Levels | Humidity levels should be kept low to avoid condensation inside the unit. |
| Vibration and EMI | Operate away from high-vibration areas and electromagnetic interference (EMI) sources. |
| Drainage | Ensure proper drainage set up for the cold trap to prevent overflow. |
| Gas/Water Supply | Ensure compatibility with any gas or water supplies needed for operation. |
Site Preparation Checklist
Before installing the YR05199, it is important to complete a comprehensive site preparation. The following checklist outlines the necessary steps:
| Step | Action |
|---|---|
| 1 | Verify the location has adequate electrical outlets and meets voltage requirements. |
| 2 | Check that the ambient temperature and humidity levels are within specified ranges. |
| 3 | Ensure stable flooring to avoid vibrations during operation. |
| 4 | Prepare drainage solutions for any condensation from the cold trap. |
| 5 | Confirm available space for maintenance and air circulation around the unit. |
Technical Specifications of the YR05199
| Model | YR05199 |
|---|---|
| Freeze Area | 0.09m² |
| Tray Material | Ф200mm, 3 layers |
| Distance Between Plates | 70 mm |
| Storage Temperature | -40 ~ +60°C |
| Water Capture Capacity | 6 kg/24h |
| Ultimate Vacuum | ≤ 5pa (without load) |
| Weight | 105 KG |
| Dimensions | 630×580×1455mm |
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR05199 Freeze Dryer?
The ideal environmental conditions for the YR05199 include a stable room temperature between -40°C to +60°C, low humidity levels, and minimal vibration. Ensure the equipment is located away from electromagnetic interference sources.
How much space should be allowed around the YR05199 Freeze Dryer?
It is recommended to allow at least 20 cm of clearance on all sides of the YR05199 for ventilation and maintenance access.
What is the power supply requirement for the YR05199 Freeze Dryer?
The YR05199 requires a stable power supply of 1800W. Always check that the voltage matches the specifications stated in the equipment manual.
How can I ensure proper drainage for the YR05199 Freeze Dryer?
Make sure to prepare a drainage solution for the cold trap to avoid overflow during the freeze-drying process.
What should be done if the YR05199 does not power on after installation?
If the YR05199 does not power on, check the power supply connection, ensure the voltage is correct, and confirm that the emergency stop is not engaged.
Are there any specific installation tools required for the YR05199?
Typically, standard tools for assembly and leveling are sufficient. However, ensure that you have the necessary equipment for secure anchoring and connection to utilities.
Can the YR05199 Freeze Dryer be used in humid environments?
It is not recommended to use the YR05199 in humid environments as high humidity can affect the freeze-drying process and lead to equipment malfunction.
