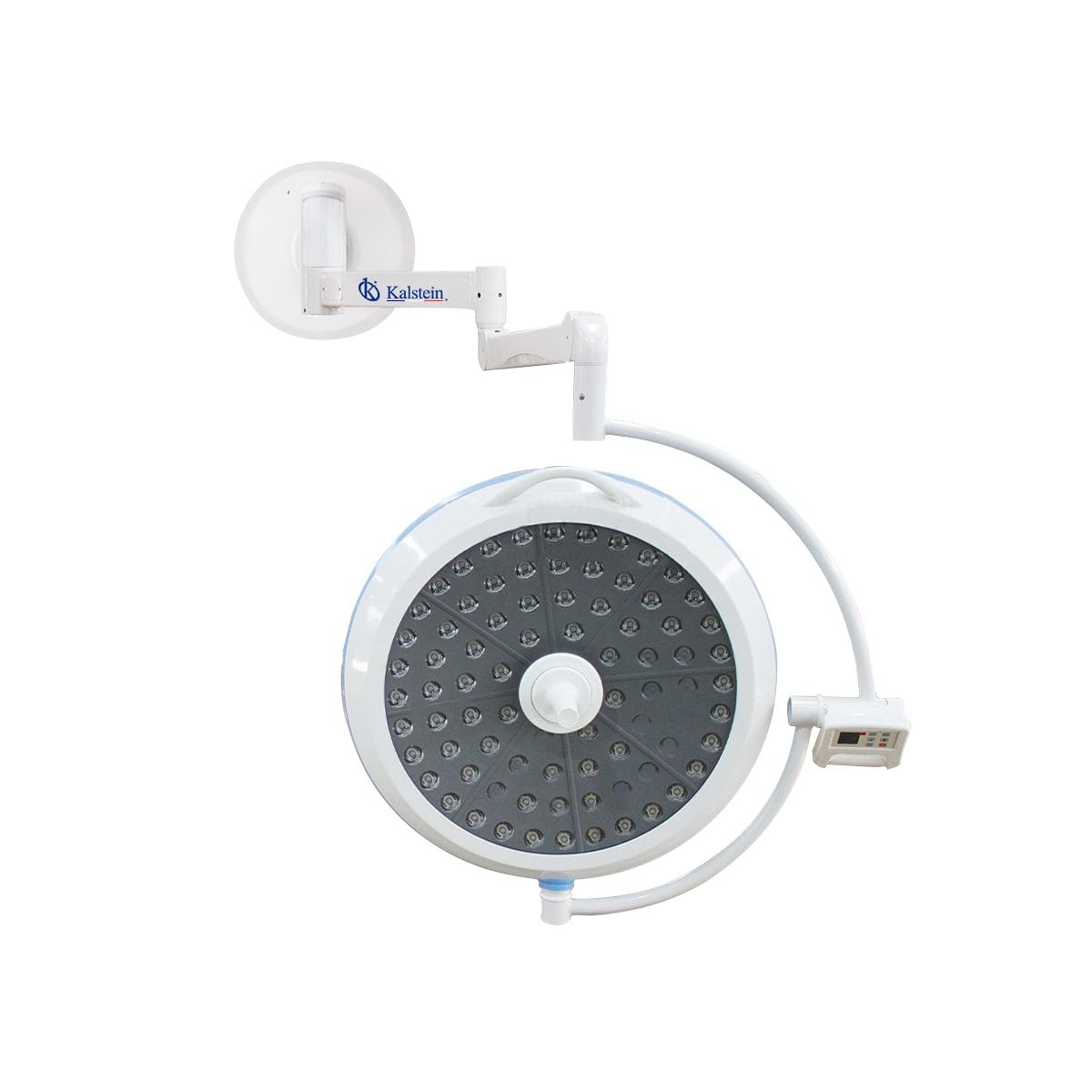

Installation Guide and Commissioning for the YR06118 LED Shadowless Surgical Lamp
The YR06118 LED Shadowless Surgical Lamp is engineered for precision and reliability in clinical environments. In this guide, we will delve into the essential steps for installation and commissioning, ensuring that operators can leverage the full capabilities of this advanced surgical lighting solution.
Unboxing and Preparation for Installation
Before commencing the installation of the YR06118, it is crucial to properly unbox and prepare the lamp. Follow these steps to ensure all components are accounted for:
- Check the package contents against the provided checklist to ensure all parts are included.
- Inspect the lamp and components for any signs of damage during shipping.
- Gather necessary tools such as a screwdriver, drill, and level for mounting.
Mounting the YR06118 Surgical Lamp
The YR06118 is designed for wall mounting, and the following steps will guide you through the installation process:
- Select the Installation Location: Choose a location that allows for optimal lighting during surgical procedures, ensuring the lamp can be adjusted to various angles.
- Mark the Installation Height: The optimal installation height for the YR06118 is 3.0 meters; however, it can also be installed at a minimum height of 2.8 meters.
- Anchor the Mounting Bracket: Use the drill to fix the mounting bracket securely to the wall, ensuring it is level to avoid misalignment.
- Attach the Lamp Head: Carefully attach the lamp head to the mounting bracket, ensuring it is securely locked in place.
Power Setup and Initial Calibration
After mounting the lamp, it's time to set up the power supply and perform the initial calibration:
- Connect the Power Cable: Ensure the power supply specifications match the requirements of the YR06118 (220V, 50Hz).
- Power On: Switch on the lamp and observe the startup sequence. The LED lights should illuminate without flickering.
- Initial Calibration: Adjust the lighting settings to ensure optimal illuminance, ranging from 40,000 to 160,000 Lux, and color temperature between 3000K to 6700K.
Understanding the Features of the YR06118
The YR06118 boasts several advanced features designed to provide optimal performance in surgical environments:
- Cold Light Effect: The LED source generates minimal heat, ensuring temperatures above the surgical site do not exceed 1℃, thus preserving the integrity of the surgical field.
- Long Lifespan: With an operational lifespan of up to 60,000 hours, the YR06118 significantly reduces the need for frequent bulb replacements.
- 360-Degree Rotation: The lamp head can rotate fully, providing flexibility and ease of positioning during procedures.
Common Setup Mistakes and How to Avoid Them
Being aware of common installation mistakes can save time and prevent issues:
- Incorrect Height: Ensure the lamp is installed at the recommended height of 3.0 meters to achieve optimal lighting.
- Neglecting Power Specifications: Always verify that the electrical outlet matches the lamp's voltage and frequency requirements.
- Improper Leveling: Use a level tool when mounting to avoid misalignment that could affect lighting effectiveness.
Technical Specifications of YR06118
| Specification | Details |
|---|---|
| Model | YR06118 |
| Mounting | Wall-mounted |
| LED Bulbs | 80 pcs |
| Illuminance | 40,000~160,000 Lux |
| Color Temperature | 3,000~6,700K adjustable |
| Diameter of Light Spot | 160-280 mm |
| Dimming System | Continuous dimming system |
| Color Rendering Index | ≥96 |
| Lighting Depth | ≥600 mm |
| Temperature Rise at Operator’s Head | ≤1℃ |
| Voltage | 220V, 50Hz |
| Optimum Installation Height | 3.0m |
Frequently Asked Questions
What are the key features of the YR06118 LED Shadowless Surgical Lamp?
The YR06118 features a cold light effect, an ultra-long lifespan of 60,000 hours, and a 360-degree rotation capability, making it ideal for surgical environments.
How can I ensure proper installation of the YR06118?
To ensure proper installation, select the optimal mounting height, securely anchor the mounting bracket, and verify that the electrical supply matches the lamp’s requirements.
What should I do if the YR06118 does not power on?
If the lamp does not power on, check the power connection, ensure the outlet functions properly, and confirm that the voltage requirements are met.
How can I clean and maintain the YR06118?
Clean the lamp with a soft, damp cloth and avoid using harsh chemicals. Regularly inspect for any mechanical issues and ensure that all connections are secure.
What is the warranty period for the YR06118 LED Surgical Lamp?
The YR06118 typically comes with a warranty term of 1 to 2 years, depending on the purchase agreement. Regular maintenance can extend its usable life.
Can the YR06118 be used in different surgical environments?
Yes, the YR06118 is versatile and can be adapted for various surgical procedures, including those in veterinary, clinical, and educational settings.
How does the YR06118 ensure optimal lighting conditions during procedures?
The YR06118 provides adjustable illuminance and color temperature, allowing for precise lighting tailored to the specific needs of various surgical operations.
