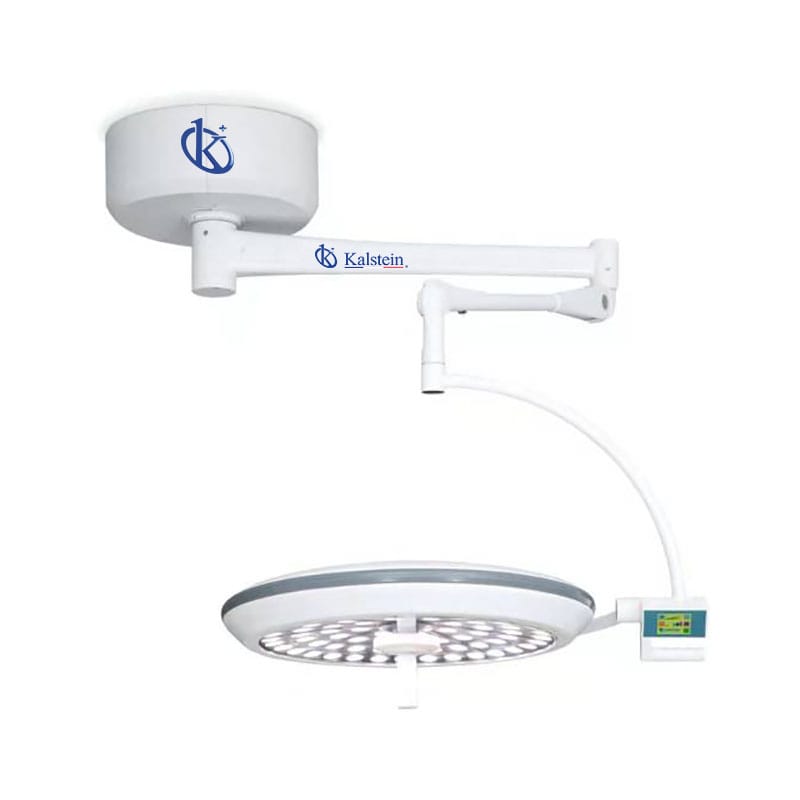

Installation and Environmental Conditions for the YR02124 Operation Lamp
The YR02124 Operation Lamp is designed for precision and clarity in clinical environments. To ensure that it operates at its best, understanding the installation requirements and environmental conditions is critical. This guide details how to set up the lamp correctly and what conditions are necessary for optimal performance.
Understanding the YR02124 Operation Lamp
The YR02124 features dual dome heads, each providing 160,000 Lux illumination, with a touchscreen LCD control panel. The adjustable lighting and color temperature can be set in 10 and 5 steps respectively, providing versatility for various clinical tasks. Its advanced PWM technology offers flicker-free lighting, which is vital for prolonged procedures. The lamp also integrates a removable sterilizable handle and an optional UPS battery, enhancing its functionality in surgical settings.
Technical Specifications of the YR02124
| Specification | Details |
|---|---|
| Model | YR02124 |
| Head Diameter | 700/500 mm |
| No. Of LED Bulbs | 80 pcs + 48 pcs |
| Illumination | 160,000 Lux / 140,000 Lux |
| CRI | Ra > 95 |
| Color Temperature | 3500-5000K |
| Illumination Depth | 1200 mm |
| Spot Diameter | 120-300 mm |
| LED Life | > 50,000 Hours |
| LED Brand | OSRAM GWCS8PM1.CM |
| UPS | Optional |
Site Installation Requirements for the YR02124
Proper installation of the YR02124 is crucial to its performance and longevity. Here are the key site requirements you should consider:
- Temperature Range: The operational temperature should be maintained between 20°C to 25°C (68°F to 77°F) to ensure the lamp functions effectively.
- Humidity Control: Relative humidity should ideally be between 40% and 60% to avoid condensation that may affect electrical components.
- Electrical Specifications: The lamp operates on standard voltage, but ensure the circuit can handle the load without fluctuations to prevent premature wear.
- Adequate Ventilation: Ensure that there’s adequate airflow around the lamp to prevent overheating, particularly if multiple units are used in close proximity.
- Vibration and EMI: Install the lamp away from heavy machinery that may cause vibrations or EMI, which could affect performance and accuracy.
- Clearances: Maintain a minimum clearance of 1 meter around the lamp for safe operation and maintenance access.
Environmental Impact on Performance
The YR02124 is engineered for high performance, but environmental factors can significantly affect its functionality:
- Light Quality: The high CRI (Color Rendering Index) of over 95 ensures accurate color representation, which is critical in surgical procedures. Poor environmental conditions can distort light quality.
- Temperature Fluctuations: Excessive temperature changes can lead to reduced lifespan of LEDs and affect the steady operation of the lamp.
- Air Quality: Contaminants in the air can settle on the lamp, dimming its light output and necessitating more frequent cleaning.
Common Installation Mistakes
Identifying and avoiding common installation pitfalls can help maintain the longevity and effectiveness of the YR02124:
- Improper Mounting: Ensure the lamp is securely mounted to avoid any risk of it falling or being dislodged during use.
- Incorrect Wiring: Always adhere to the manufacturer’s electrical guidelines to prevent short circuits and damage.
- Neglecting Calibration: After installation, a proper calibration should be conducted to guarantee correct light output and functionality.
Preparation Checklist for Installation
| Preparation Steps | Details |
|---|---|
| Unboxing | Check all components are included as per the manual. |
| Site Assessment | Verify that the installation site meets all environmental requirements. |
| Power Supply Check | Ensure that the power supply meets the necessary specifications. |
| Mounting Setup | Prepare the mounting system according to the instructions. |
| Initial Calibration | Perform initial power-up and calibration checks. |
Frequently Asked Questions
What environmental conditions are ideal for operating the YR02124?
The ideal environmental conditions for operating the YR02124 include a temperature range of 20°C to 25°C, relative humidity between 40% and 60%, and sufficient ventilation to prevent overheating.
How do I install the YR02124 correctly?
To install the YR02124 correctly, ensure the mounting is secure, check the electrical specifications, conduct proper calibration, and verify all components are functioning before use.
What are common installation mistakes to avoid with the YR02124?
Common installation mistakes include improper mounting, incorrect wiring, and neglecting to calibrate the lamp after installation.
How does temperature affect the YR02124's performance?
Fluctuations in temperature can lead to a reduced lifespan for the LEDs and affect the operation of the lamp. It is recommended to maintain stable temperature conditions within the specified range.
Can I use optional accessories with the YR02124?
Yes, optional accessories such as a UPS battery and integrated cameras can be utilized to enhance the functionality of the YR02124 in various settings.
How often should the YR02124 be serviced?
The YR02124 should be serviced regularly according to the manufacturer's guidelines, typically every 6 to 12 months, to ensure optimal performance and longevity.
What is the expected lifespan of the YR02124's LED lights?
The LED lights in the YR02124 are designed to last over 50,000 hours under normal operating conditions, contributing to long-term reliability.
