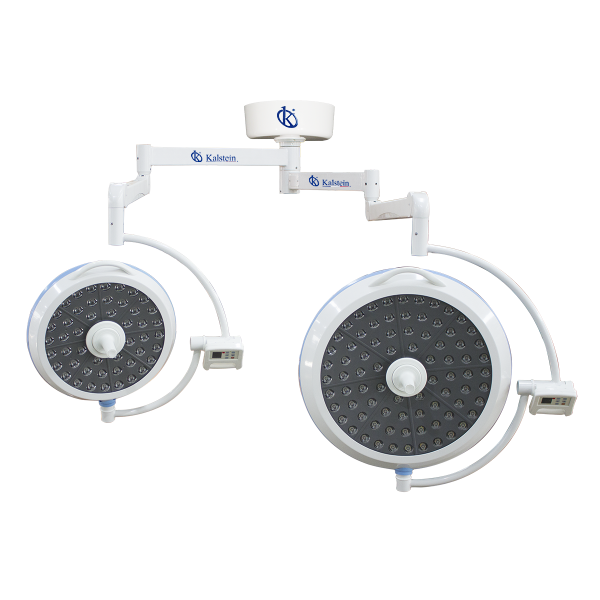

Installation and Commissioning Guide for the YR06116 LED Double-Head Surgical Lamp
The YR06116 LED Double-Head Surgical Lamp is designed to provide optimal lighting conditions necessary for surgical procedures. This guide aims to assist operators in the successful installation and commissioning of the YR06116, ensuring that the lighting system operates safely and efficiently.
Unboxing and Initial Setup
Before installation, it is crucial to verify that all components are present and undamaged. The unboxing checklist includes:
- YR06116 LED Double-Head Surgical Lamp
- Mounting hardware
- User manual
- Power supply unit
- Control panel
- Camera system (if applicable)
- Detachable handle
Inspect the lamp and accessories for any visible damage. In case of any discrepancies, contact your supplier immediately.
Installation Steps
The installation process involves several critical steps to ensure the proper functioning and safety of the YR06116 lamp.
Mounting the Lamp
The YR06116 should be mounted securely to the ceiling or wall at the desired height. Ensure that the mounting surface can support the weight of the lamp. Use the provided mounting hardware to anchor the lamp. Level the lamp before securing it fully to ensure optimal lighting direction.
Connecting the Power Supply
Connect the power supply unit to a reliable power source, ensuring compatibility with the local voltage and frequency standards. Verify all connections are tight and secure before powering on the lamp.
First Power-Up and Calibration
Once installed, perform a power-up sequence. Turn on the lamp and check all functionalities, including the illumination intensity and color temperature adjustments. Calibration may be necessary to ensure consistent performance. Refer to the user manual for specific calibration instructions.
Technical Specifications of the YR06116
| Model | YR06116 |
|---|---|
| Illuminance | 160,000 LuX |
| Service Life | 60,000 hours with no need to change bulbs |
| Temperature Resistant Detachable Handle | ≤160°C |
| Color Temperature Adjustment | 3500K to 5000K in six levels |
| Brightness Adjustment | Automatic 6-stage continuous light adjustment |
Common Setup Mistakes
It is essential to avoid common mistakes that may hinder the performance of the YR06116 lamp. Here are some errors to watch for:
- Incorrect Mounting Height: The lamp should be mounted at an appropriate height to ensure optimal lighting conditions.
- Poor Cable Management: Ensure that power cables are neatly arranged and do not pose a tripping hazard.
- Neglecting Calibration: Failing to calibrate the lamp can lead to inconsistent lighting performance.
- Ignoring User Manual: Always refer to the user manual for specific installation guidelines and recommendations.
Frequently Asked Questions
What are the key features of the YR06116 LED Double-Head Surgical Lamp?
The YR06116 offers advanced features such as high illuminance of 160,000 LuX, a long service life of 60,000 hours without bulb changes, and a color temperature adjustment range from 3500K to 5000K, enhancing surgical visibility.
How do I ensure proper lighting conditions in the operating room with the YR06116?
To ensure proper lighting conditions, mount the YR06116 at the recommended height, perform accurate calibration, and adjust the brightness and color temperature according to the specific needs of the surgery being performed.
Can the YR06116 be used with external camera systems?
Yes, the YR06116 is compatible with various camera systems, offering options for internal and external setups to facilitate remote teaching and documentation.
What maintenance is required for the YR06116?
Regular maintenance includes checking the lamp for cleanliness, ensuring the detachable handle is properly sterilized, and verifying that all electrical connections are secure. Follow the user manual for specific maintenance frequency.
How does the detachable handle benefit the YR06116?
The detachable handle is made of high-quality materials that allow for easy sterilization at high temperatures, ensuring compliance with aseptic standards in surgical environments.
Are there any restrictions on the installation location for the YR06116?
Yes, the installation location must meet specific environmental requirements such as temperature, humidity, and electrical specifications. Proper ventilation and clearances must also be maintained to ensure safe operations.
How can I request a quote for the YR06116?
You can request a quote for the YR06116 by contacting our sales team or visiting our catalog online, where you can explore competitive pricing options for this product.
