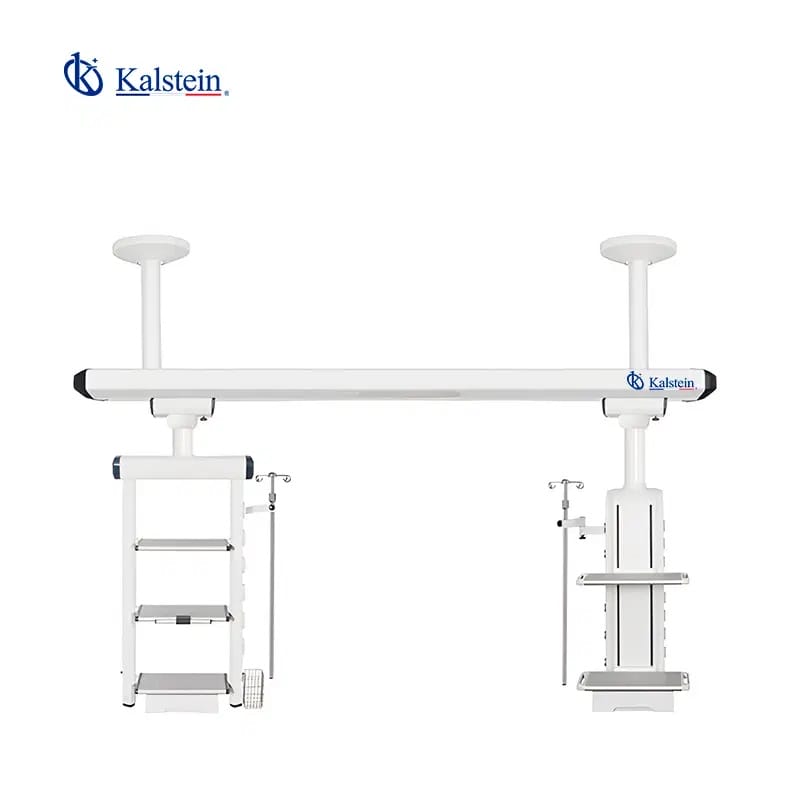

Installation and Commissioning Guide for YR02089 Sliding Pendant: Streamlining Patient Care
The YR02089 Sliding Pendant is an innovative solution designed to enhance the efficiency of patient care in modern medical facilities. This guide delves into the installation and initial setup of the YR02089, ensuring operators can effectively utilize this equipment to meet patient needs. The pendant's design incorporates a suspension system that conceals cables and pipes, optimizing space and promoting a clean environment.
Understanding the YR02089 Sliding Pendant
The YR02089 Sliding Pendant is specifically engineered for adult and pediatric intensive care units, procedure monitoring, and recovery rooms. Its design allows for flexible bedside care tailored to patient requirements, integrating various utility options within a streamlined framework. This section outlines the key features of the YR02089, focusing on its wet and dry section configurations, which facilitate a practical approach to hospital setups.
Key Features Overview
- Wet Section: Includes flexible infusion support and shelves for pumps, ensuring immediate access to critical equipment.
- Dry Section: Offers additional storage options and various gas and electrical outlets; designed for efficiency and convenience.
- Versatile Configuration: Supports multiple gas outlets and power sockets compliant with various international standards.
- Modular Design: Features a ceiling suspension that allows 340° rotation, providing flexibility in patient monitoring.
Technical Specifications of YR02089
| Specification | Details |
|---|---|
| Model | YR02089 |
| Brand | Kalstein |
| Category | Operation Ceiling Pendant |
| Price (USD) | $2457.00 |
| Gross Weight | 283 kg |
| Dimensions | 677 x 195 x 159 mm |
Installation Steps for the YR02089 Sliding Pendant
Installing the YR02089 requires careful planning and execution to ensure safety and functionality. Below is a step-by-step guide for successful installation.
Step 1: Unboxing and Inspection
Upon receiving the YR02089, carefully unbox the unit and inspect for any visible damages or missing components. Ensure all accessories are accounted for, including installation brackets, gas outlets, and electrical connections.
Step 2: Site Preparation
Evaluate the installation site to ensure it meets the necessary requirements for mounting the pendant. Key considerations include:
- Ceiling height and strength to support the pendant's weight.
- Proximity to power sources and gas supplies for optimal functionality.
- Clearance space around the pendant to guarantee ease of use.
Step 3: Mounting the Pendant
Securely anchor the YR02089 to the ceiling structure using appropriate mounting hardware. Ensure the pendant is level to facilitate operation and aesthetics.
Step 4: Connecting Gas and Power
Connect the necessary gas outlets (O2, Air, Vacuum) according to the specified configuration. Follow safety protocols when handling gas connections. Next, install the electrical connections necessary for the pendant's operation, ensuring they comply with established standards.
Step 5: Final Checks
Before powering on, conduct a thorough inspection of all connections, ensuring no loose wires or leaks are present. Perform a power-up sequence to ensure everything functions as intended.
Initial Setup and Calibration
Once installed, the YR02089 requires an initial setup to ensure optimal performance. This section provides guidance on calibrating the pendant for first-time use.
Calibration Steps
Follow these steps to calibrate the YR02089:
- Power on the unit and verify that all displays are functioning correctly.
- Check that the gas outlets are delivering the appropriate flow rates.
- Set parameters for height adjustments of monitoring equipment according to user preferences.
Troubleshooting Common Issues
During the operation of the YR02089, users may encounter issues. Below is a table detailing common symptoms, potential causes, and solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Disconnected power supply | Check and reconnect power supply |
| Gas flow is inconsistent | Blocked gas outlet | Inspect and clear gas outlet |
| Inaccurate height adjustments | Calibration required | Re-calibrate height settings |
Frequently Asked Questions
What types of gas outlets are available on the YR02089?
The YR02089 features several gas outlets, including two for oxygen (O2), one for air, and one for vacuum, all compliant with German standards.
How can I ensure the YR02089 is properly leveled after installation?
Utilize a leveling tool during installation to confirm the pendant is even both horizontally and vertically before securing it to the ceiling.
What safety precautions should be taken when connecting gas to the YR02089?
Ensure all gas connections are tight and leak-free. Utilize gas detectors to verify no leaks before powering up the unit.
Are there any maintenance requirements for the YR02089?
Regular maintenance checks should include visual inspections of gas and electrical connections, as well as testing the functionality of the pendant's features.
Can the YR02089 be customized with additional accessories?
Yes, the YR02089 can be customized with various accessories to enhance its functionality based on the specific needs of the medical facility.
What is the expected lifespan of the YR02089 Sliding Pendant?
The expected lifespan of the YR02089 is typically several years with proper maintenance. Regular checks will help identify any potential issues early.
How does the YR02089 compare to other models in its class?
The YR02089 offers a unique blend of modular design and flexibility, making it suitable for various healthcare environments compared to other static models.
To request a quote for the YR02089 or explore its features further, please reach out today.
