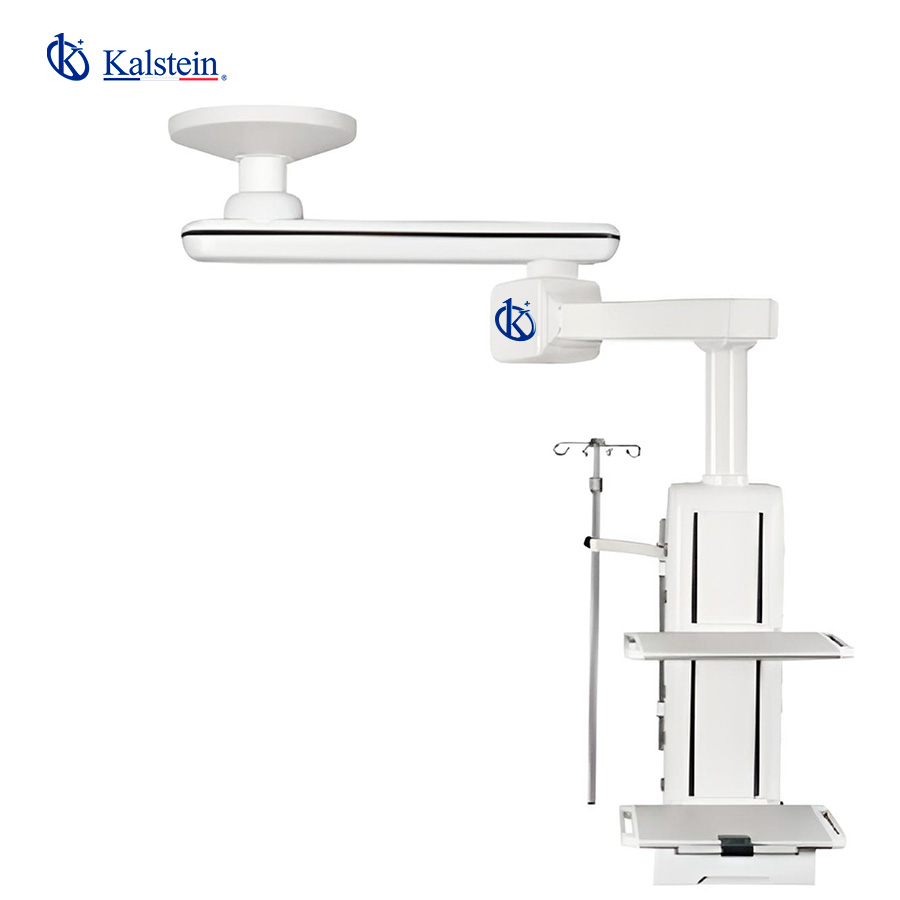

Installation and Commissioning Guide for the YR02087 Double Arm Anesthesia Pendant
The YR02087 Double Arm Anesthesia Pendant is designed for use in intensive care units, providing complete monitoring and support in recovery rooms. This guide focuses on the installation and commissioning of this versatile device, ensuring it meets the individual needs of patients while maintaining a clean and organized environment.
Understanding the YR02087: Overview and Features
The YR02087 features a unique design that conceals cables and pipes within its structure, allowing for a streamlined and clutter-free setup. It boasts a convenient dry and wet separation configuration that not only saves space but also enhances usability with its effective yet simple structure. The wet section includes flexible components for infusion needs, while both sections incorporate an adjustable height medical monitoring platform.
Technical Specifications of the YR02087
| Specification | Details |
|---|---|
| Model | YR02087 |
| Arm Elevation Range | 500 mm |
| Arm Length | 1000 mm + 800 mm |
| Standard Configuration | 1 Oxygen (O2), 1 Air, 1 Suction (Vac), 1 Jet Exhaust Emission (AGSS), 6 x 10A Power Outlets, 1 Network Socket, 1 Grounding Terminal, 1 Guideway Extension Arm |
| Weight Capacity | 200 kg |
| Net Weight | 205 kg |
| Dimensions | 316 x 129 x 102 cm |
Unboxing and Initial Setup
Upon receiving the YR02087, carefully unbox the device and inspect all components to ensure nothing is damaged or missing. Key items to verify include the anesthesia pendant, user manual, installation hardware, and any additional components specified in the standard configuration.
Next, select a suitable location for the installation. Ensure that the space meets the required site conditions, including ceiling load capacity and proximity to power sources. The pendant should be mounted at a height that allows for optimal accessibility and maneuverability.
Anchoring and Leveling the YR02087
To anchor the YR02087, use the provided mounting brackets and secure them to the ceiling. It is essential to ensure that the pendant is level during installation. Use a leveling tool to verify the alignment before tightening all screws. A properly leveled installation is crucial for maintaining the functionality of the support arms and the overall operational efficiency of the pendant.
Power-Up Sequence and First-Run Calibration
Once installed, connect the YR02087 to the power supply and perform the power-up sequence. Refer to the user manual for detailed instructions on how to initiate the device. After powering up, the system will require calibration to ensure that all monitoring and support functions are operational.
During this process, check all connections and ensure that the medical monitoring platform is functioning as expected. Verify that the output for gas supplies (oxygen, air) is working correctly, and that suction and electrical outlets are accessible and operational.
Common Installation Mistakes to Avoid
As with any complex medical equipment, there are potential installation pitfalls. Common mistakes include improper anchoring, neglecting to perform calibration, and not verifying the functionality of all components before use. Ensure thorough testing is completed to prevent complications during operation.
Frequently Asked Questions
What are the site requirements for installing the YR02087?
The site should meet specific conditions such as adequate ceiling load capacity to support the pendant, electrical supply availability, and sufficient space for proper access and use. Ideally, the installation area should also provide good ventilation and be free from obstructions.
How do I calibrate the YR02087 for the first time?
Calibration is performed through the device’s control interface. Follow the guidelines provided in the user manual for step-by-step instructions. Ensure that all gas and suction lines are connected properly before starting calibration.
Can the YR02087 be adjusted for different patient needs?
Yes, the YR02087 is designed with versatility in mind. Its adjustable medical monitoring platform and multiple configurations for gas and electrical connections allow for customization based on individual patient requirements.
What maintenance is recommended for the YR02087?
Regular maintenance should include checking all connections, inspecting the physical condition of the pendant, and testing functionality frequently. Follow the manufacturer’s recommendations for service intervals to ensure long-term reliability.
What should I do if the YR02087 does not power on?
If the device does not power on, check the power connection, ensure the circuit is functional, and inspect for any blown fuses. Refer to the troubleshooting section of the manual for more detailed diagnostic steps.
Are there any accessories available for the YR02087?
Yes, there are several optional accessories that can enhance the functionality of the YR02087. These include specialized surgical lights, additional gas outlets, and customized storage solutions for medical supplies.
How can I request a quote for the YR02087?
To request a quote for the YR02087, please contact our sales team through the provided channels. We will be happy to assist you with your inquiry and ensure you receive the best pricing available.
