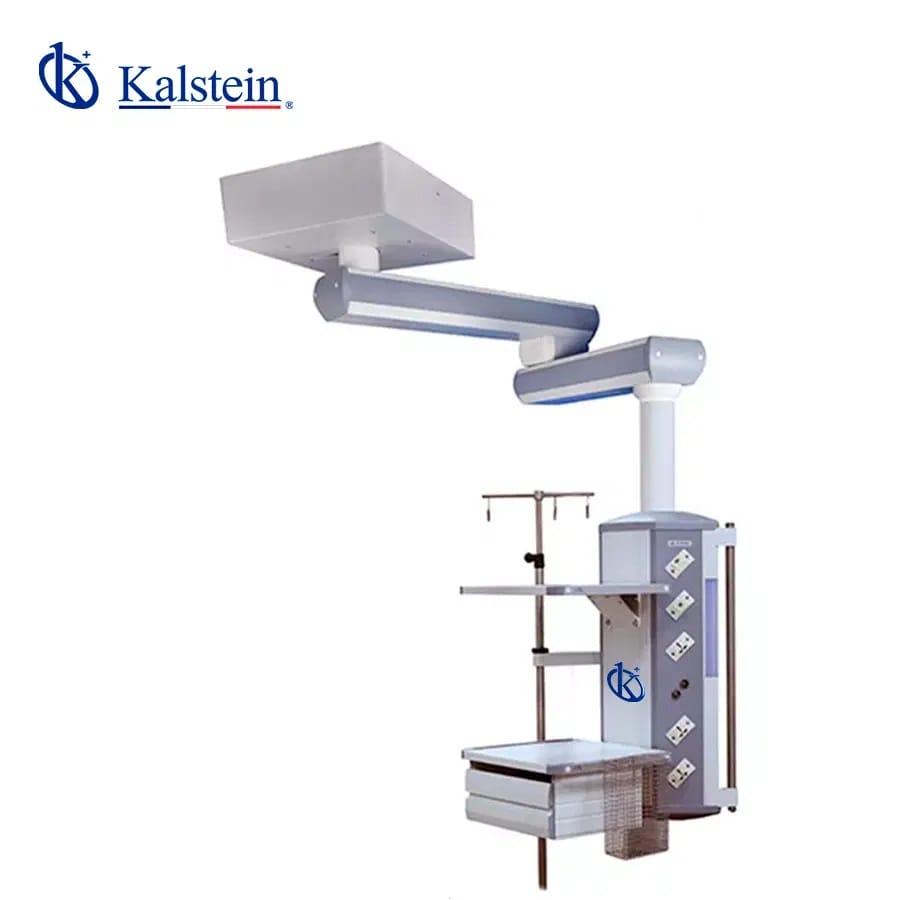

Installation and Commissioning Guide for the YR02081 Double Arm Endoscopy Pendant
The YR02081 Double Arm Endoscopy Pendant is a sophisticated piece of medical equipment, designed for ease of use in operating rooms, emergency rooms, intensive care units, and recovery rooms. This guide provides detailed instructions on the installation and commissioning process, ensuring that users can achieve optimal performance and safety.
Understanding the YR02081 Double Arm Endoscopy Pendant
The YR02081 is engineered for flexibility and practicality in surgical environments. Its ceiling-mounted design allows for a 340° rotation, making it easier for medical staff to access essential tools and supplies without obstructing the workspace. The device's robust construction, made of high-quality aluminum alloy, is designed to withstand the rigors of a clinical setting.
Technical Specifications of the YR02081
| Specification | Details |
|---|---|
| Model | YR02081 |
| Arm Rotating Radius | 800mm + 800mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction Brake |
| Maximum Load Capacity | 160 kg |
| Electrical Socket | 2 Earth Studs |
| Standard Configuration | 1 Oxygen (O2), 1 Air, 1 Vacuum Suction (VAC), 6×10A Power Outlets, 1 Network Socket, 1 Grounding Terminal |
| Accessories | 2 Equipment Shelves, 1 IV Pole & Infusion Pump Rack |
Installation Checklist for the YR02081
Before beginning the installation, ensure all components and tools are on hand:
- YR02081 Pendant
- Ceiling Mounting Hardware
- Electric Power Source
- Safety Gear (Gloves, Goggles)
- Leveling Tools
- Wrench Set
- Measuring Tape
- Installation Manual
Steps for Installing the YR02081 Pendant
Follow these key steps to successfully install the YR02081:
Step 1: Unboxing the Equipment
Carefully unbox the YR02081, checking for any visible damage and ensuring all components are accounted for as listed in the manual.
Step 2: Ceiling Mounting
Using the provided mounting hardware, securely attach the pendant to the ceiling, ensuring it is level. Make sure to follow the weight distribution recommendations outlined in the manual.
Step 3: Electrical Connections
Connect the pendant to the electrical supply, ensuring that all connections are tight and comply with local electrical codes. Utilize the two earth studs for grounding purposes.
Step 4: Verification of Safety Features
Confirm the functionality of the friction brake system and ensure all safety measures are in place according to the manufacturer's guidelines.
Step 5: Testing the Pendant’s Movement
Test the arm's rotation and ensure that the 340° turning capability is functioning properly without obstruction.
Common Installation Mistakes and How to Avoid Them
To avoid common pitfalls during installation, consider the following tips:
- Ensure the ceiling structure can support the pendant's weight and load capacity.
- Double-check all electrical connections before powering up.
- Use a level during installation to ensure the equipment is correctly positioned.
- Follow the manual closely, particularly regarding safety guidelines.
Commissioning the YR02081 Pendant
Once installed, commissioning the YR02081 is crucial for ensuring optimal performance:
Power-Up Sequence
Begin by turning on the main power supply to the pendant. Observe for any error codes or malfunctions during the power-up process.
Calibration Procedures
Follow the manufacturer's calibration guidelines to ensure all functions are performing within specified parameters.
Initial Functionality Testing
Conduct a complete test of the pendant's movement, braking system, and power supply connections before putting the equipment into active use.
Frequently Asked Questions
What is the maximum load capacity of the YR02081 Double Arm Endoscopy Pendant?
The YR02081 has a maximum load capacity of 160 kg, ensuring it can support various medical equipment effectively.
How do I troubleshoot if the pendant does not power on?
If the YR02081 does not power on, check the electrical connections, ensure the main power supply is active, and verify that all safety features are correctly engaged.
What are the dimensions required for the installation of the YR02081?
The installation dimensions depend on the ceiling height and the intended operational space; consult the installation manual for specific requirements.
How often should the friction brake system be checked?
The friction brake system should be inspected regularly, as part of routine maintenance, to ensure it remains functional and safe for use.
Can the YR02081 be used in various medical settings?
Yes, the YR02081 is designed for versatility and can be effectively used in operating rooms, emergency rooms, and intensive care units.
What accessories come standard with the YR02081?
The YR02081 standard configuration includes 1 Oxygen (O2) outlet, 1 Air outlet, 1 Vacuum Suction outlet, and 6 electrical power outlets, along with additional equipment shelves.
Are there optional accessories available for the YR02081?
Yes, various optional accessories can be added to enhance the functionality of the YR02081, including additional shelves and specialized mounting brackets.
