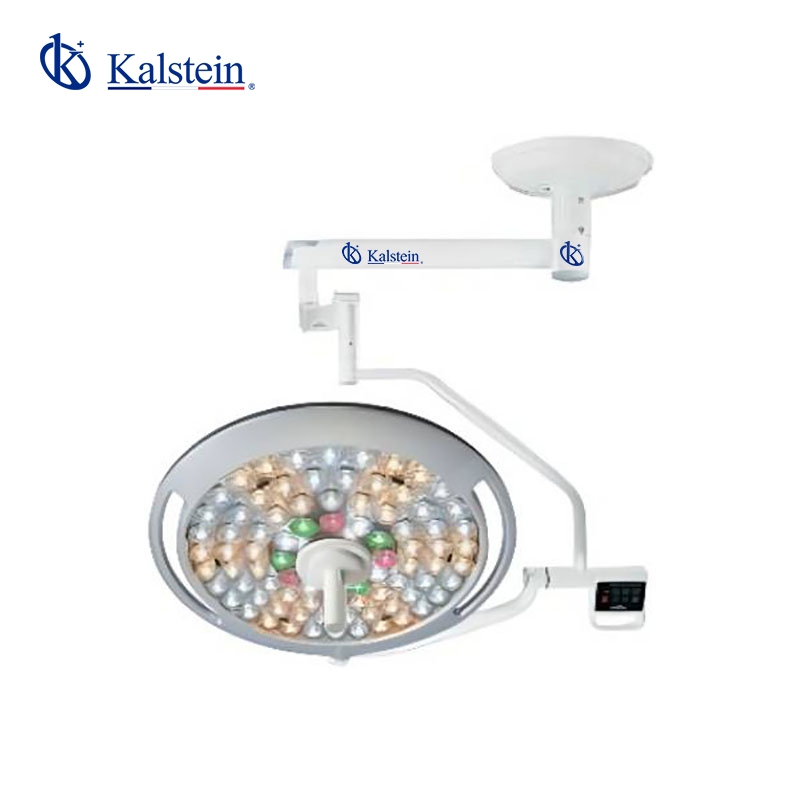

Customization and Advanced Configurations for the YR02105 Surgical Light
The YR02105 surgical light is designed specifically to meet the demanding needs of healthcare professionals. Its customization options and advanced configurations make it a versatile tool for various surgical environments. Understanding how to optimize its features can significantly enhance its usability and performance.
Technical Specifications of the YR02105
| Specification | Value |
|---|---|
| Model | YR02105 |
| Illumination at 1m (lux) | 160000 |
| Illumination at 1m on Endo model (lux) | 15000 |
| Light field diameter D10 mm | 180±40 |
| D50 mm | 110±35 |
| Depth of illumination L1+L2 mm | 150 |
| Color rendering index (Ra) | 100≥Ra≥85 |
| Red color index R9 | R9≥97 |
| Optional color temperature (K) | 6700K ≥Tc≥3500k |
| Average bulb life (hours) | 50000h |
| Heat-to-light ratio (mW/m²lx) | <6 |
| Power supply | 110-240V |
| Input power (VA) | 150W |
| Ceiling height for installation (cm) | 270-320 |
Customizing Lighting Options
One of the primary features of the YR02105 is its adjustable color temperature, which ranges from 3500K to 6700K. This feature allows surgical teams to customize the lighting to their specific needs, enhancing visibility and reducing eye strain during procedures. The ability to switch between modes also includes a special R9 mode, which provides superior color rendering for better visibility of red hues, essential in surgical procedures.
By using the smart touchscreen control panel, users can easily adjust these settings on-the-fly, ensuring optimal illumination for varying surgical conditions.
Optional Accessories and Modules
The YR02105 offers a variety of optional accessories that can be integrated into its design to enhance its functionality. Some of these accessories include:
- Mobile Stand: Perfect for flexibility in operating rooms.
- Additional LED Panels: For larger surgical fields.
- Remote Control System: Enables hands-free adjustments during surgeries.
- Additional Power Sources: Ensures continuous operation even during power outages.
These accessories not only customize the YR02105 but also ensure that it fits the unique requirements of different surgical environments.
Advanced Operating Modes
The YR02105 is equipped with advanced operating modes that cater to various surgical disciplines:
- Standard Mode: Ideal for general surgical procedures.
- R11 Green Mode: Reduces visual strain by providing softer light conditions.
- Endo Mode: Specifically designed for endoscopic surgeries.
These modes can be toggled easily from the control panel, allowing surgeons to react swiftly during operations for better outcomes.
Site Preparation and Environmental Conditions
Proper installation and environmental setup are crucial for the optimal performance of the YR02105. The recommended installation height is between 270-320 cm from the ceiling, ensuring that surgeons have ample light coverage without obstruction. The operating room should ideally maintain a stable temperature and humidity level to prolong the life of the LED bulbs and ensure functionality.
| Site Requirement | Recommendation |
|---|---|
| Installation Height | 270-320 cm |
| Temperature Range | 18-24°C |
| Humidity Level | 30-70% |
| Power Supply | 110-240V, 150W |
Frequently Asked Questions
What are the key features of the YR02105 surgical light?
The YR02105 surgical light features adjustable color temperature, multiple operating modes (including R11 and Endo modes), a smart touchscreen control panel, and a high color rendering index suitable for various surgical applications.
How can I customize the lighting settings on the YR02105?
The lighting settings can be customized via the smart touchscreen interface, allowing you to adjust the color temperature and select different operating modes to suit your specific surgical needs.
What optional accessories are available for the YR02105?
Optional accessories for the YR02105 include a mobile stand, additional LED panels, a remote control system, and additional power sources, enhancing its usability in various surgical environments.
What are the environmental requirements for installing the YR02105?
It is recommended to install the YR02105 at a height of 270-320 cm, within a room that maintains a temperature range of 18-24°C and a humidity level of 30-70% to ensure optimal performance.
How does the YR02105 compare to other surgical lights?
The YR02105 offers superior customization options, advanced operating modes, and a high color rendering ability that makes it especially suitable for complex surgical procedures compared to standard surgical lights.
What is the expected lifespan of the YR02105's bulbs?
The average bulb life of the YR02105 is approximately 50,000 hours, allowing for extended use without the need for frequent replacements.
How can I request a quote for the YR02105?
You can easily request a quote for the YR02105 surgical light by contacting our sales team or through our online quotation system.
