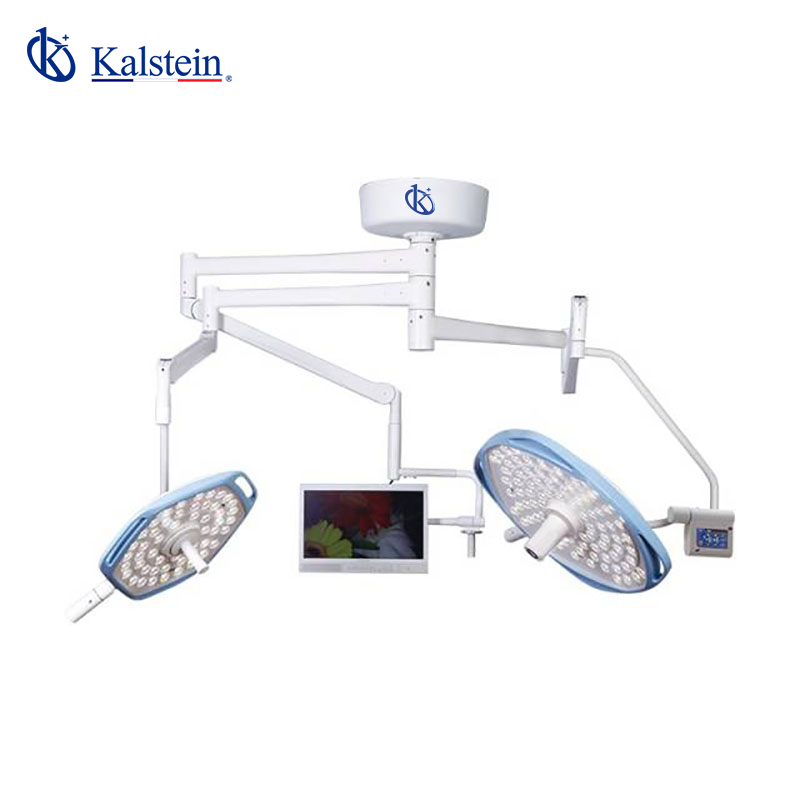

Customization and Advanced Configuration of the YR02113 LED Surgical Light
The YR02113 LED Surgical Light stands as a pinnacle of modern surgical lighting solutions, combining advanced technology with ease of use. This article delves into the customization options and advanced configurations available for the YR02113, allowing medical professionals to tailor the lighting experience to their specific needs.
Technical Specifications of the YR02113
| Specification | Value | Notes |
|---|---|---|
| Model | YR02113 | Primary model for LED surgical lighting |
| Intensity at 1m (Lux) | 160000/160000 | High luminosity for clear visibility |
| Color Temperature (K) | 4500±500 | Adjustable for optimal lighting conditions |
| Color Rendering Index (Ra) | ≥97 | Accurate color representation for procedures |
| Field Diameter (mm) | 180-300 | Adjustable coverage area |
| Illumination Depth (L1+L2) (mm) | ≥1000 | Deep illumination for surgical precision |
| Intensity Control | 10%-100% | Full control of lighting intensity |
| Type of Intensity Control | Control panel | Easy operation |
| Type of Field Focusing Control | Sterilizable handle | Ensures surgical hygiene |
| Number of LEDs | 176 | High-efficiency lighting |
| Lamp Lifetime (h) | ≥50000 | Long-lasting performance |
| Bulb Rated Power | 3.2V/1W | Energy-efficient lighting |
| Voltage Supply | AC110-240V 50/60HZ | Universal compatibility |
| Minimum Installation Height (mm) | 2600 | Optimal height for usage |
Customization Options for the YR02113
The YR02113 provides a plethora of customization options that allow surgical teams to adapt the light to their unique working styles and procedural demands. The following sections outline key customization features:
1. Adjustable Color Temperature
The YR02113 features an adjustable color temperature setting, typically ranging from 4000K to 5000K. This flexibility is essential in surgical environments where different procedures may require distinct lighting tones to enhance visibility and reduce eye strain for the medical staff.
2. Intensity Control
With a robust intensity control ranging from 10% to 100%, users can easily adjust the brightness based on the specific requirements of the operation being conducted. This feature is particularly useful in delicate surgical procedures where excessive brightness could impede the surgeon's visibility.
3. Focus Control
The sterilizable handle allows for precise focus control, enabling surgeons to direct the light exactly where it's needed. This feature reduces shadows and provides clearer visibility of the surgical field, thereby enhancing overall procedural outcomes.
Advanced Configurations
In addition to customization, the YR02113 supports several advanced configurations that can further enhance its performance:
1. Endo Mode
The integrated Endo mode is specifically designed for endoscopic procedures, offering tailored illumination that maximizes visibility in limited spaces. This configuration is crucial for ensuring successful outcomes in minimally invasive surgeries.
2. Integrated HD Camera
The YR02113 includes an integrated HD camera, which can be utilized for documentation and educational purposes. This feature facilitates real-time sharing of surgical techniques and allows for post-operative reviews.
Integration of Optional Accessories
Enhancing the functionality of the YR02113 can be achieved through various optional accessories:
- Additional Light Heads: For expanded lighting coverage in larger operating rooms.
- Light Diffusers: To soften the light and minimize glare during procedures.
- Mounting Brackets: Customizable mounting solutions to suit various surgical environments.
Recommended Settings for Different Procedures
Adapting the YR02113's configurations based on the type of surgical procedure can significantly enhance its effectiveness. Below are recommended settings for specific types of surgeries:
| Procedure Type | Recommended Color Temperature (K) | Recommended Intensity (%) |
|---|---|---|
| General Surgery | 4500 | 70%-100% |
| Endoscopic Surgery | 4000 | 50%-80% |
| Orthopedic Surgery | 5000 | 80%-100% |
Frequently Asked Questions
What is the maximum illumination depth of the YR02113?
The YR02113 offers an illumination depth greater than 1000 mm, providing deep light penetration for various surgical procedures.
How long is the expected lamp lifetime for the YR02113?
The lamp in the YR02113 is rated for a lifetime of over 50,000 hours, ensuring longevity and reducing the frequency of replacements.
Can the color temperature of the YR02113 be adjusted during a procedure?
Yes, the YR02113 allows for real-time color temperature adjustments, helping surgeons optimize the lighting conditions as needed throughout the procedure.
What type of power supply does the YR02113 require?
The YR02113 operates on an AC power supply ranging from 110 to 240 volts at 50/60 Hz, making it compatible with various electrical systems worldwide.
How does the integrated HD camera improve surgical outcomes?
The integrated HD camera in the YR02113 enables real-time documentation and educational sharing, improving surgical training and review processes.
Can the YR02113 be used in conjunction with other surgical lights?
Yes, the YR02113 can be integrated with additional surgical lights for enhanced coverage in larger surgical environments, ensuring optimal lighting conditions.
What maintenance is required for the YR02113?
Regular cleaning of the light and sterilizable handle is recommended, along with periodic inspections to ensure all controls are functioning correctly.
