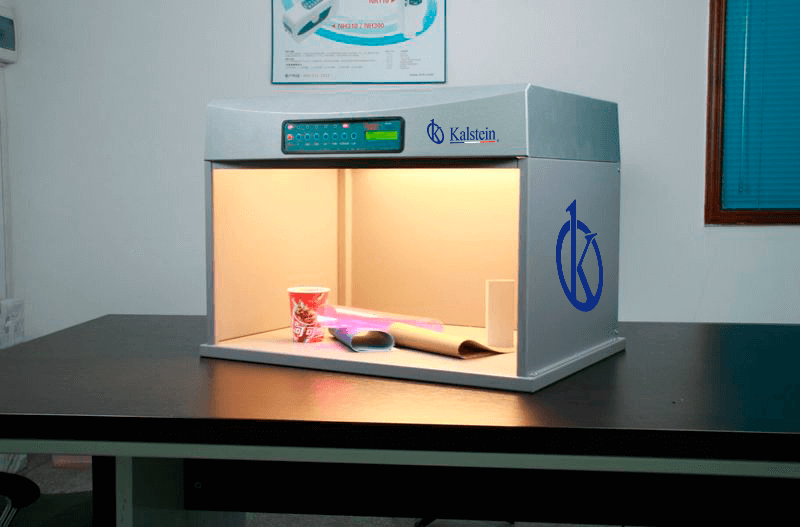

Common Errors and Troubleshooting Symptoms of the YR05523 Color Light Box
The YR05523 Color Light Box is an essential tool for various industries, including textiles, printing, and automotive, providing accurate color evaluations under controlled lighting conditions. However, like any sophisticated equipment, users may encounter issues. This article will explore common errors and troubleshooting symptoms related to the YR05523, enabling operators to maintain optimal performance.
Understanding the YR05523 Color Light Box
Before diving into troubleshooting, it’s important to understand what the YR05523 Color Light Box is designed for. It accommodates up to six different light sources, ensuring reliable color assessments under consistent lighting. The light box complies with major international standards, making it a reliable choice for industries requiring accurate color matching.
Technical Data of the YR05523
| Model | YR05523 |
|---|---|
| Light Source | D65, TL84, CWF, TL83/U30, F, UV |
| Dimensions (W x D x H) | 695 x 552 x 502 mm |
| Internal Size (W x D x H) | 665 x 490 x 360 mm |
| Voltage | 220V/50Hz – 110V/60Hz |
| Weight | 28.9 kg |
| Power Consumption | Efficient energy consumption |
Troubleshooting by Symptoms
This section will cover specific symptoms users may encounter with the YR05523 Color Light Box, their probable causes, and recommended solutions.
Equipment Does Not Power On
One of the most common issues is the equipment not powering on. This may be caused by power supply issues, faulty connections, or internal component failures.
- Check if the power cable is securely connected to the light box and the power outlet.
- Inspect the power outlet by testing another device to ensure it is functioning.
- Examine the power cable for any visible damage.
- If the power supply is fine, internal components may need professional servicing.
Error Code E-03
Error code E-03 may indicate a malfunction in one of the light sources. The following steps can help diagnose and solve this issue:
- Refer to the user manual for a detailed description of the error code.
- Check individual light sources for proper functioning and replace any faulty bulbs.
- Reset the light box and observe if the error code persists.
Inconsistent Readings
Inconsistent readings during color assessments can lead to significant issues in various applications. Possible causes include:
- Ensure that the internal light sources are clean and free from dust.
- Verify that the light box is placed on a stable and level surface.
- Check for any external light interference and relocate the unit if necessary.
Symptom to Cause and Solution Table
| Symptom | Probable Cause | Proposed Solution |
|---|---|---|
| Equipment does not power on | Power supply issue or internal failure | Check connections and test the outlet |
| Error code E-03 | Malfunctioning light source | Inspect and replace faulty bulbs |
| Inconsistent readings | Dirty light sources or external interference | Clean surfaces and relocate the unit |
Common Maintenance Tips
Regular maintenance of the YR05523 Color Light Box is crucial to avoid errors and ensure longevity. Follow these tips:
- Clean the internal and external surfaces regularly to prevent dust accumulation.
- Regularly check and replace light sources according to the manufacturer's recommendations.
- Conduct periodic checks of the electrical components to ensure functionality.
Frequently Asked Questions
What should I do if the YR05523 Color Light Box shows an error code?
First, consult the user manual to decode the error. Carry out routine checks on the light sources and connections, and reset the device if needed. If the issue persists, consider contacting a technician for assistance.
How often should the light sources be replaced in the YR05523?
It is recommended to replace light sources every 1000 operating hours or as indicated by the elapsed time meter in the unit, ensuring optimal performance.
Can the YR05523 be used outdoors?
No, the YR05523 Color Light Box is designed for indoor use only. Exposure to outdoor elements may damage the unit and affect its operation.
How do I ensure accurate color evaluations with the YR05523?
For accurate evaluations, ensure the environment is free from extraneous light, keep the unit clean, and regularly calibrate the device according to specified standards.
What industries can benefit from using the YR05523 Color Light Box?
The YR05523 is beneficial in textiles, automotive, printing, and packaging industries, where precise color assessment is critical for quality control.
Where can I find replacement parts for the YR05523?
Replacement parts can be sourced directly from the manufacturer or authorized distributors. Always ensure that the parts meet the specifications for the YR05523.
How can I request a quote for the YR05523?
You can request a quote for the YR05523 Color Light Box by contacting our sales team through our official channels.
