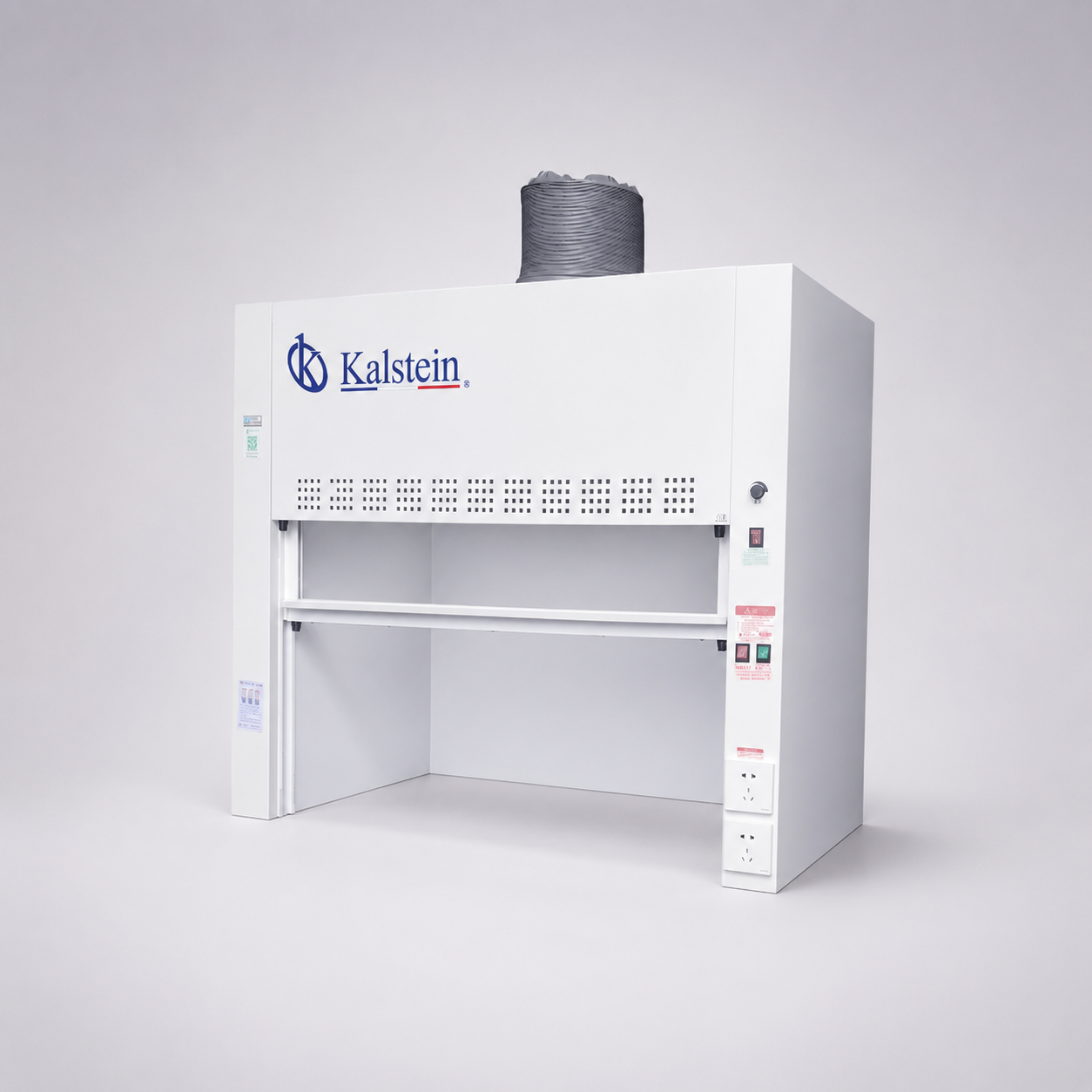

Chemical Laboratory Fume Hood YR05808 / YR05812
Epoxy-coated steel · acid & alkali resistant · ≤ 60 dB
The Kalstein YR05808 and YR05812 are basic-chemistry laboratory fume hoods built from 1.2 mm cold-rolled steel with an epoxy powder coating that resists strong acids and alkalis. A phenolic resin worktop, tempered safety window and axial extraction blower with 0.4-0.6 m/s face velocity keep operators safe from corrosiv
Interactive tour
Every component, engineered for your safety
Click the hotspots to explore the materials and systems that make this hood a reliable choice for basic chemistry.
Inspectable components
- Epoxy-coated steel bodyStructure
Cold-rolled steel body with epoxy powder coating for chemical resistance.
- Tempered glass windowSafety
Transparent front barrier protects the operator while preserving visibility.
- Axial blowerExtraction
Adjustable blower captures vapors through the front opening.
- Upper exhaust ductAirflow
Captured fumes leave through the top duct toward extraction or exterior exhaust.
- Phenolic resin worktopMaterials
Durable 12.7 mm work surface for routine chemical handling.
- LED lightingLighting
Integrated lighting keeps reactions and glassware clearly visible.
Key features
- Cold-rolled steel body 1.2 mm with epoxy powder coating — chemical resistant
- Face velocity 0.4-0.6 m/s adjustable across three preset modes
- Extraction 800-1000 m³/h with axial blower and top exhaust duct
- Phenolic resin worktop 12.7 mm — resistant to acids and alkalis
- Tempered safety-glass sash with balanced counterweight
- Integrated LED 10 W illumination ≥ 800 lux · noise ≤ 60 dB
Triple protection · engineered layers
Operator protection
Front sash and horizontal room-air intake keep vapors and fumes inside the chamber and away from the operator.
- Front sash
- Room-air intake
- Alarm on low flow
- Face velocity
- 0.5 m/s
- Noise level
- ≤ 60 dB
- LED lighting
- 10 W
Structural durability
Cold-rolled steel with epoxy coating resists chemical spills and years of daily operation.
- Epoxy coating
- Phenolic worktop
- Tempered glass
- Steel gauge
- 1.2 mm
- Worktop
- 12.7 mm
- Tempered glass
- 5 mm
Versatile installation
Available in two widths and compatible with laboratory exhaust ducts up to 3 m.
- 1300 mm width
- 1800 mm width
- Top duct output
- m³/h airflow
- 800–1000
- Duct length
- 3 m
- Power
- 220 V
Airflow modes · what happens in every direction
- Low — Low airflow · 0.4 m/s
Recommended for low-volatility solvents and general handling.
- Medium — Medium airflow · 0.5 m/s
Optimal balance for most chemistry protocols.
- High — High airflow · 0.6 m/s
Aggressive extraction for highly volatile or toxic vapors.
- Auto — Automatic purge cycle
Periodic full-power ventilation to purge residual vapors before shutdown.
Technical specifications
| Model | YR05808 / YR05812 |
|---|---|
| Construction | Cold-rolled steel 1.2 mm · epoxy powder coating |
| Face velocity | 0.4 – 0.6 m/s |
| Extraction rate | 800 – 1000 m³/h |
| Noise level | ≤ 60 dB |
| Illumination | LED 10 W |
| Worktop | Phenolic resin 12.7 mm |
| Front window | Tempered safety glass |
| External dimensions | YR05808: 1300×850×2350 · YR05812: 1800×850×2350 mm |
| Power supply | 220 V / 50-60 Hz |
Applications
- Basic chemistry teaching labs
- QC laboratories with corrosive reagents
- Sample preparation with acids/bases
- Industrial and food chemistry
- Research with volatile solvents
Real-world use cases · guided workflows
General chemistry laboratory
Everyday handling of solvents, acids and bases in teaching and research chemistry.
- Open sash to working height
- Turn on fan and lighting
- Perform reactions inside the chamber
- Close containers and lower sash
- Purge before shutdown
Pharmaceutical compounding
Weighing and mixing of raw materials in compounding pharmacies.
- Clean worktop and calibrate balance
- Introduce ingredients
- Weigh and mix inside the chamber
- Package and label
- Clean the fume hood
Analytical sample preparation
Sample digestion, extraction and preparation for chromatography or spectroscopy.
- Prepare glassware
- Add solvents inside the hood
- Perform digestion or extraction
- Transfer sample to instrument
- Decontaminate
Fast quotation · 15 seconds
Add the YR05808 to your chemistry lab
Two widths, one quality standard. Receive full specification, delivery and installation in a single quote.
Frequently asked questions
Which chemicals is the YR05808 designed for?
Basic-chemistry work with strong acids and alkalis (HCl, H2SO4, NaOH…) and common volatile solvents. For perchloric acid or hydrofluoric acid choose the stainless-steel YR05820-SS instead.
What is the difference between YR05808 and YR05812?
YR05808 is 1300 mm wide; YR05812 is 1800 mm wide. Both share the same construction, filtration path and 0.4-0.6 m/s face velocity range.
Does it require external ducting?
Yes. Both models are ducted fume hoods and must be connected to a dedicated exhaust duct discharging above the roof line.
How loud is the extraction?
≤ 60 dB at the operator position at maximum speed — quiet enough for continuous laboratory use.
