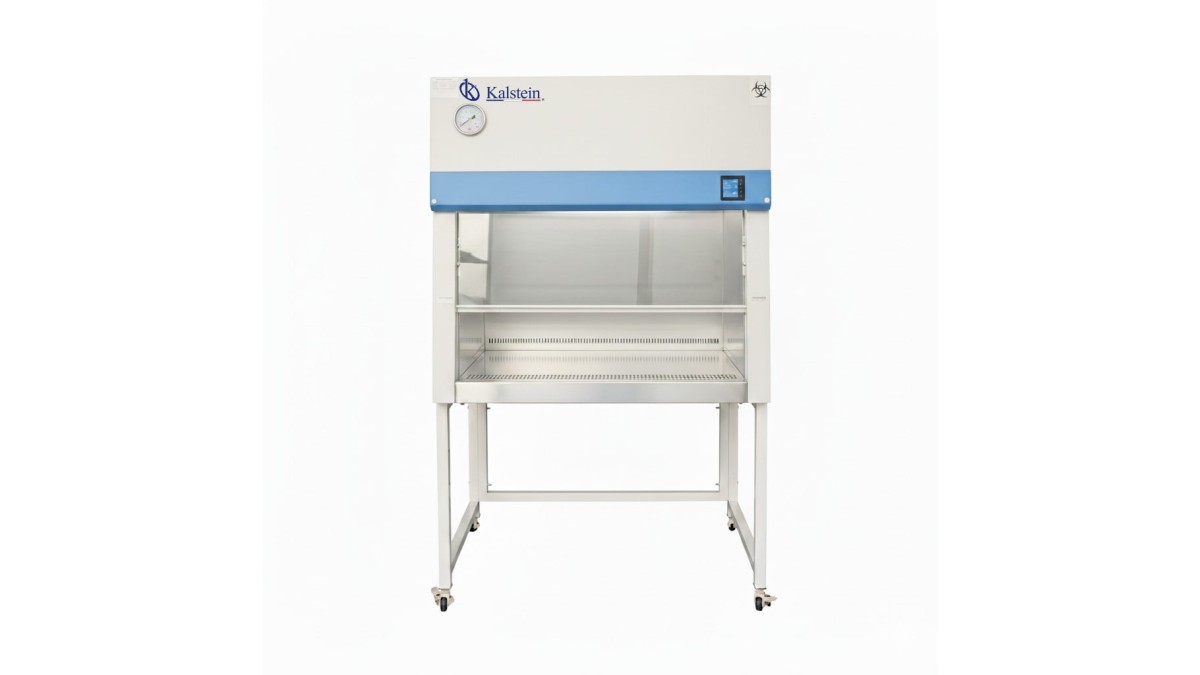

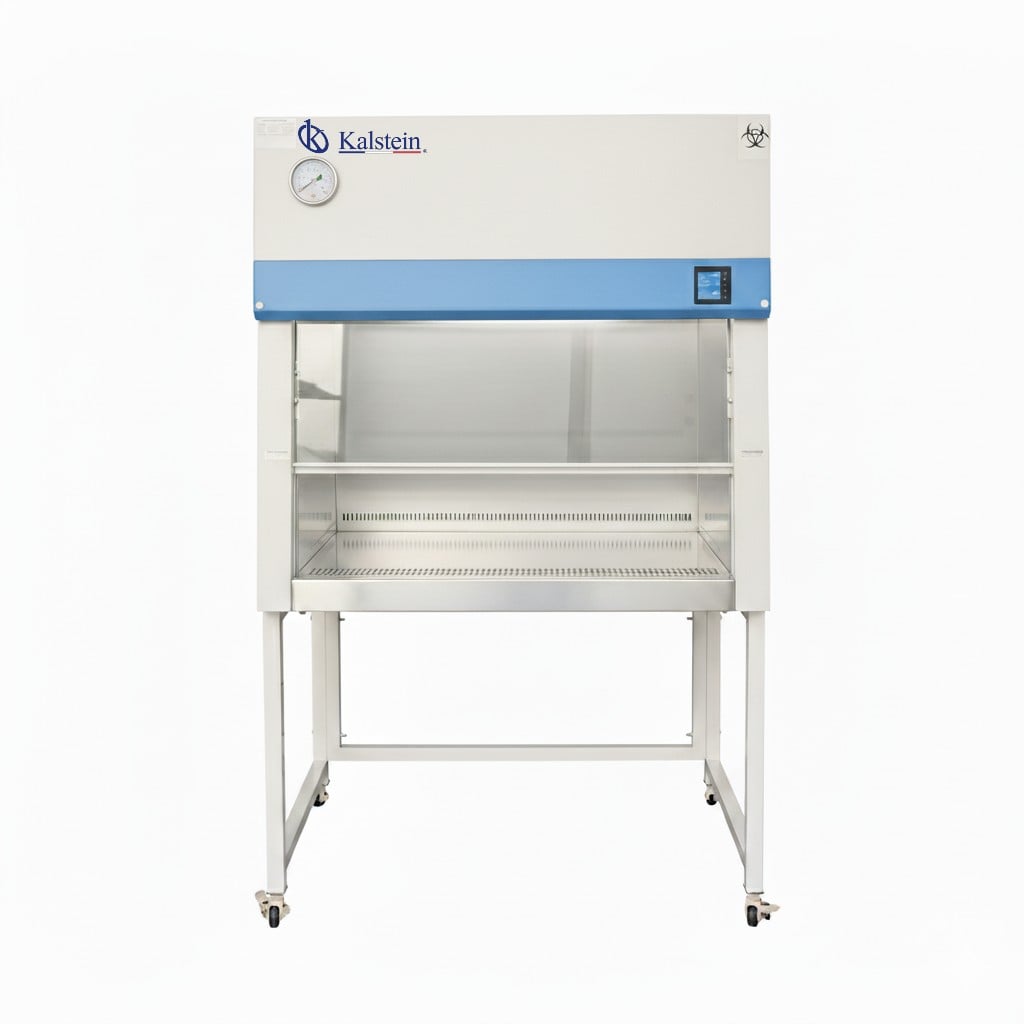

Biosafety Cabinet YR06544: A Comprehensive Overview
The Biosafety Cabinet YR06544 is a state-of-the-art solution expertly crafted to safeguard laboratory personnel, products, and the environment. This high-quality cabinet operates on a negative pressure system that effectively prevents leaks, ensuring a safe working environment for handling biological agents. With its dual filtration system and advanced airflow design, the YR06544 is ideal for laboratories requiring stringent biosecurity measures.
Product Description
The YR06544 model features a unique design that includes 70% internal circulation and 30% external discharge. Constructed from high-quality cold-rolled steel, the cabinet’s work surface is made of corrosion-resistant physical-chemical plates. Precision CNC laser cutting and electrostatic epoxy resin coating enhance its durability and aesthetics.
Equipped with a smart control system, the YR06544 features an intuitive LCD touchscreen that provides real-time operational status. This biosafety cabinet complies with the international ISO 14644.1 Class 5 standards, which is equivalent to the US Federal Standard 209E Class 100, thus ensuring optimal cleanliness and safety in laboratory environments.
Motor Features: The cabinet is powered by a high-efficiency German EBM motor, designed for high airflow with low energy consumption. This motor minimizes turbulence and ensures uniform airflow, crucial for maintaining sterile conditions.
Filtration System: It is equipped with high-efficiency external HEPA filters and very high-efficiency ULPA descending filters, offering exceptional filtration capabilities.
Market Price
| Specification | YR06543 | YR06544 | YR06545 | YR06546 | YR06547 |
|---|---|---|---|---|---|
| Package Size (mm) | 110*100*140 | 130*100*140 | 160*100*140 | 190*100*140 | 210*100*140 |
| External Dimensions (mm) | 900*760*2250 | 1100*760*2250 | 1300*760*2250 | 1500*760*2250 | 1800*760*2250 |
| Internal Dimensions (mm) | 740*600*600 | 940*600*600 | 1140*600*600 | 1340*600*600 | 1640*600*600 |
| Cabinet Price (USD) | $1920.00 | $1920.00 | Price Varies | Price Varies | Price Varies |
Frequently Asked Questions
What is the difference between ULPA and HEPA filters?
The YR06544 series employs ULPA filters, which offer ultra-high efficiency (99.999% efficiency), compared to HEPA filters which provide high efficiency (99.995% efficiency). While both filter types are exceptional, ULPA offers a slightly higher purity level.
What is the accuracy of the downward airflow control?
The downward airflow control accuracy is 0.015 m/s, ensuring consistency and stability in air flow to maintain sterility in the working area.
What sizes are available for the YR06544 cabinet?
The YR06544 is available in various sizes, including dimensions that accommodate different laboratory setups and requirements.
What level of cleanliness does the cabinet guarantee?
The cabinet guarantees a level 5 cleanliness in accordance with the ISO 14644.1 standard (Class 100 US Federal 209E), which is a strict requirement for sensitive environments.
What maintenance is required for the YR06544 cabinet?
Regular maintenance includes checking the filters and recalibrating the imported sensor. It is also essential to ensure the working environment meets the temperature (10-30 °C) and humidity (below 70%) requirements.
Is the YR06544 cabinet easy to move?
Yes, the cabinet is designed with heavy-duty wheels for mobility, allowing for easy repositioning within the laboratory while ensuring stability before use.
What are the power requirements for the YR06544?
The cabinet operates on a voltage of 220V / 50HZ, making it compatible with standard laboratory electrical systems.
Pros and Cons
Pros:
- Double Filtration: Uses external HEPA filters and ULPA/HEPA descending filters, ensuring up to 99.999% efficiency.
- Superior Safety: The negative pressure design prevents leaks, protecting both the operator and the environment.
- Optimized Design: Reasonable airflow duct and optimized negative pressure box ensures uniform flow.
- High-Performance German Motor: Utilizes a low energy consumption and high volume EBM motor.
- Durable Construction: Made with corrosion-resistant cold-rolled steel and epoxy resin surface treatment.
Cons:
- Environmental Requirements: The working environment must be maintained between 10 and 30°C with relative humidity below 70%.
- Shipping Weight: The shipping weight is considerable, ranging between 138 kg and 198 kg, complicating transportation and installation.
- Flow Limitations: Although it is a recirculation system (70% internal), the 30% external discharge requires an exhaust ventilation system.
Field Usage
The Class II Type A2 Biosafety Cabinet is indispensable for handling biological agents classified as low to moderate risk, such as viruses, bacteria, and cell cultures, which require biosecurity precautions. It is the standard choice in microbiology laboratories, hospitals, and biotechnology and pharmaceutical research centers where the protection of products, personnel, and the environment is essential.
Its vibration control capacity (mean wave: 3 μm) and stable airflow are critical for delicate experiments, ensuring that specimens are kept in optimal conditions throughout research activities.
Recommendations
To ensure longevity and maximum safety for the YR06544:
- Conduct regular maintenance on the filters and verify the calibration of the imported sensor.
- Ensure that the working environment complies with temperature (10-30 °C) and humidity (below 70%) requirements.
- Periodically check the inlet airflow speed (average between 0.53 m/s to 0.56 m/s) and the downward airflow speed (average of 0.35 m/s) to ensure the effectiveness of the negative pressure protection.
- Utilize heavy-duty wheels for initial placement and ensure that the cabinet is stable before use.
