Description
- YR05530 color light box will show the using time, light source name and switch times of each light source.
- Automatically switch and with the function of metamerism.
- Without preheating, no flicker.
- Law energy consumption and high luminous efficiency.
- Equipped with whole sets of British and American standard light sources.
- Contains A light source in American Standard
- The name of light sources is changeable.
- TILO is international famous brand.
Product Features
- YR05530 color light box will show the using time, light source name and switch times of each light source.
- Automatically switch and with the function of metamerism.
- Without preheating, no flicker.
- Law energy consumption and high luminous efficiency.
- Equipped with whole sets of British and American
standard light sources.
- Contains A light source in American Standard.
- The name of light sources is changeable.
- TILO is international famous brand.

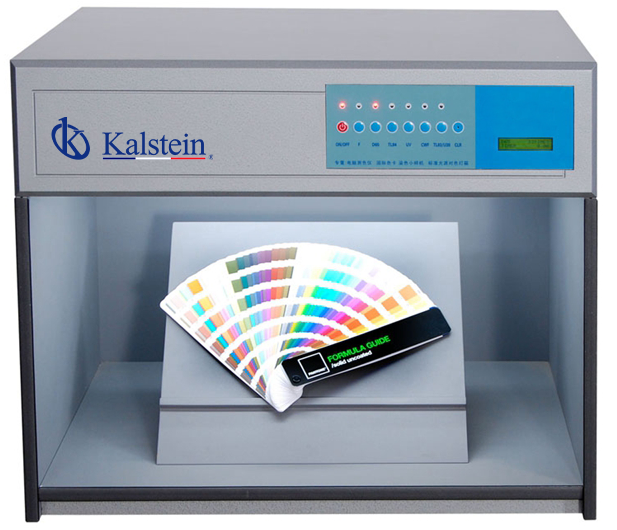

YR05530 Six-light sources light box adopts fully computer-controlled light-touch buttons to switch light sources at will, and can permanently record the name of each light source, the use time and the number of switching times. lt has the function of testing the metamerism effect. lt is implemented in accordance with international standards (ISO, ASTM, DIN, BSI, ANSI, CIE), and passes the national measurement inspection with an authoritative test report.
Application Industry
YR05530 Six sources standard light box is suitable for color management in textiles, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, ceramics, footwear, leather, hardware, food, cosmetics and other industries, used to accurately check the color deviation of items.
Technical Description
Model | YR05530 |
Project | parameters |
Configuration | F, D65, TL84, UV, CWF/TL83, A in Total Six Light Sources |
Weight | 28Kg |
Size(L*W*H) | 71 0x530x570 mm |
Optional Accessory | Light source diffuser, 45 degree standard stand |
Light source
Name | Color Temperature | Power |
D65 International standard Artificial Daylight | 6500K | 18W |
TL84 Applied to stores in Europe, Japan and China | 4000K | 18W |
CWF (Cool White Fluorescent) American Standard | 4150K | 18W |
F “Sun-setting Light Yellow” incandescent light source
(imitation of sunset) |
2700K | 40w |
UV Viewing under ultraviolet light to detect and evaluate
optical brighteners or fluorescent pigments |
365mm | 18w |
A American shopwindow spotlight | 2856K | 60w |
TL83 Warm White Fluorescent European Standard | 3000K | 18w |
