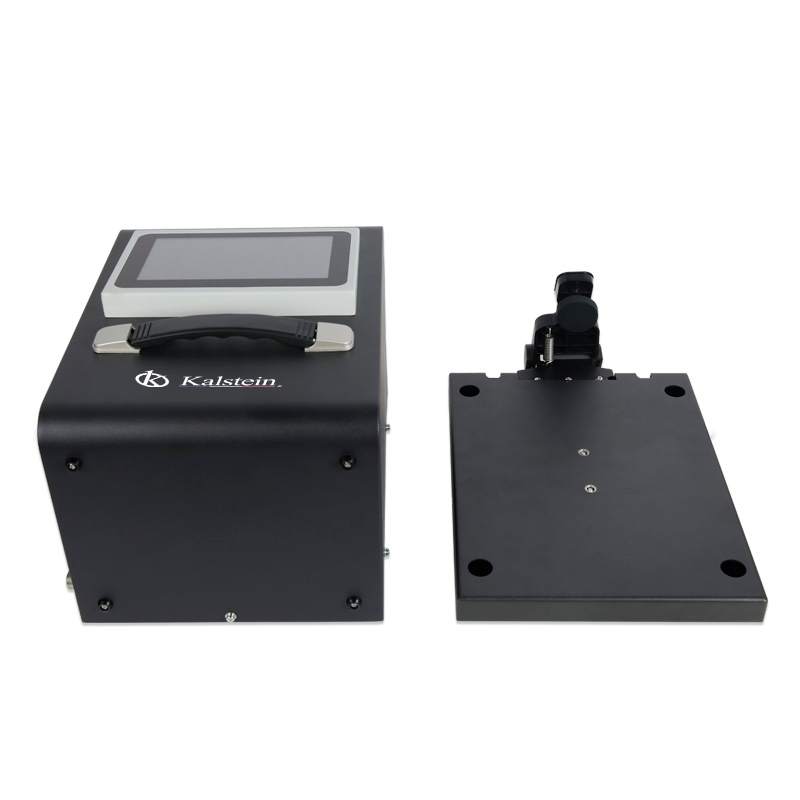

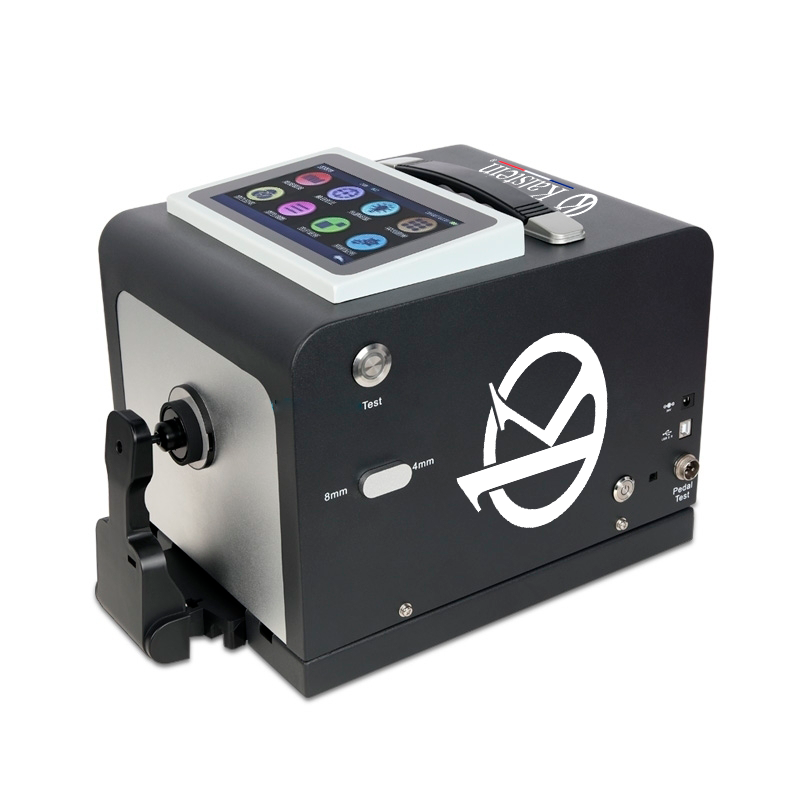

Portable Desktop spectrophotometer YR05487

ManufacturerKalstein

Description

The Portable Desktop Spectrophotometer YR05487 from Kalstein is an innovative and precise solution for color measurement across various industrial sectors, such as textiles, ceramics, plastics, and electronics. This spectrophotometer features advanced technology, including dual-array silicon photodiode sensors (40 groups in double rows) and an imported whiteboard, ensuring repeatability of ΔEab within 0.02 and internal error control of ΔEab up to 0.15. Additionally, with customizable aperture options of Φ4 mm and Φ8 mm, the YR05487 is perfectly suited for measuring large and fluorescent samples, enabling precise analysis in both horizontal and vertical orientations. Its integrated positioning camera and 7-inch touchscreen make visual control of the measurement area easy, optimizing both efficiency and precision with every reading.

Market Price

The YR05487 is available in the market at a competitive price range, between $8,390 and $8,400 USD, depending on the selected configuration and additional accessories, such as the optional micro printer or rotating stand. This strategic investment is ideal for companies seeking to enhance precision in their color control processes. To receive a tailored quote, you can quickly and easily generate a personalized estimate through the Kalstein Plus platform, ensuring a smooth and reliable purchasing experience.

Frequently Asked Questions

  • What are the recommended applications for the YR05487?
    This device is ideal for industries that require precise color control, especially for large samples, such as the textile, ceramics, and plastics sectors.
  • Is it compatible with a PC?
    Yes, the YR05487 includes color management software compatible with PCs, facilitating detailed analysis and complete color quality data management.
  • What is its storage capacity?
    The YR05487 can store up to 1,000 standards and 20,000 samples, which is perfect for keeping an organized and detailed record.

Advantages and Disadvantages

The YR05487 offers numerous advantages, including high precision and a versatile design that allows it to measure large and fluorescent samples. Its USB connectivity and Bluetooth 5.0 compatibility ensure quick and secure data transfer. However, a possible limitation is its focus on laboratory applications, which may restrict its use in more compact workspaces or tasks that do not require such high precision.

Field Applications

This spectrophotometer is effectively used in quality control laboratories, where precise color analysis is essential. Its ergonomic structure and ability to operate in various orientations make the YR05487 highly adaptable to different work conditions. Additionally, its SCI/SCE function allows for fast and detailed measurement in approximately 3.2 seconds, ensuring consistent results in industrial environments and enhancing efficiency at each stage of the production process.

Recommendations

To maximize the performance of the YR05487, regular calibrations are recommended, and the device should be kept in a clean, dust-free environment. Its full-spectrum LED light source and ultraviolet light ensure precise measurements even under special conditions. Request a personalized quote or quickly generate your estimate on Kalstein Plus, and discover how the Portable Desktop Spectrophotometer YR05487 can optimize color control in your industry, improving precision at each production stage and ensuring the visual quality of your products.

Technical Specifications

Model YR05487
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ;  Include UV / excluded UV light source
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Customized aperture,good for horizontal or vertical measurement, wider adaptability;
Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source
Spectrophotometric Mode Flat Grating
Sensors Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.2

(Average for 12 BCRA Series II color tiles)

Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 20000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment  -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)

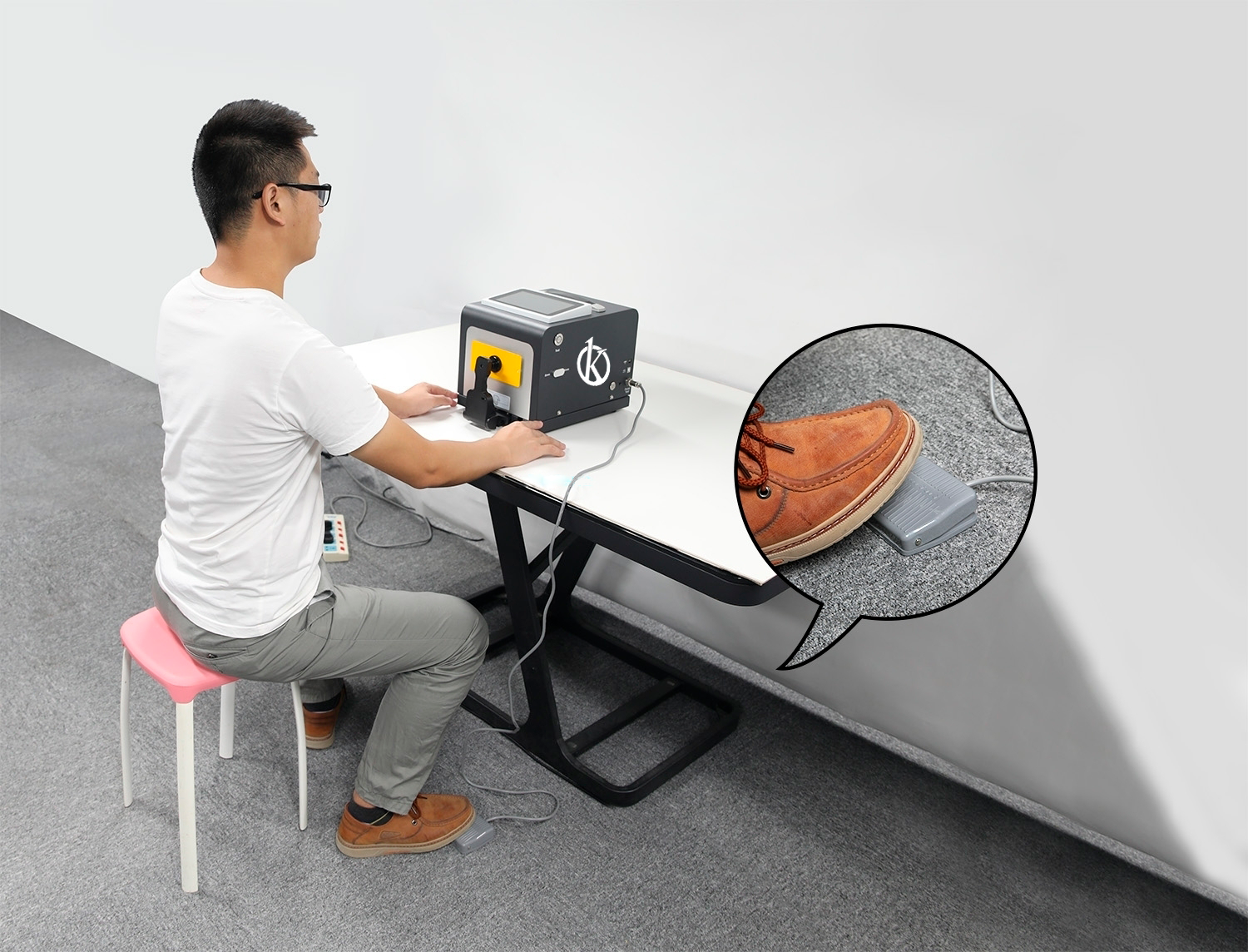

Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 12 kg
