Description

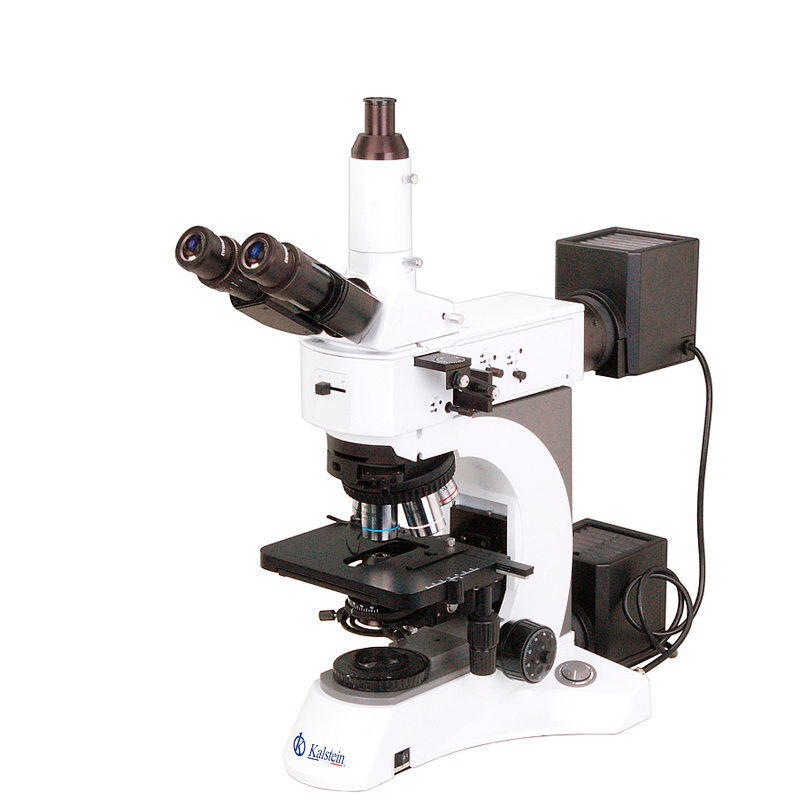

YR0255 Metallurigcal Microscope, is an ideal instrument for industry inspecition and science research laboratory.
- Infinity Optical System, BF/DF, Transmit & Reflect Illumination, DIC, Polarzing System
- Full Range BF/DF Objectives Included
- Polarization System Optional
- DIC System Optional
- Powerful Transmitted And Reflected Illumination System with Kohler Illumination.
Technical Specifications
| Model | YR0255 |
| Standard Function | BF-DF |
| Upgrade Function | BF-DF-PL-DIC |
| Features | Infinity BF+DF DIC |
| Optical System | Infinity Plan |
| Head Type | Seidentopf Trinocular |
| Head Inclination | 30° |
| Head Rotation | Head Rotate 360° |
| Head Interpupillary | 40~75mm |
| Head Diopter | Left Tube Adjustable |
| Head Light Path | E50 : P50 |
| Eyepiece Diameter | 30.0mm |
| Nosepiece Features | Inward with DIC Slot |
| Nosepiece Holes | 5 holes |
| Objective Features | LWD Covreless BF+DF DIC |
| Objective Type | Infinity Plan Dark Field Metallurgical |
| Working Stage Features | Size ≥ 140 x 180mm |
| Working Stage Type | 2 Layers Mechanical |
| Focusing Features | Safety Stop Lock Ring Tension Adjustable |
| Focusing Type | Coaxial Coarse & Fine |
| Light Soruce Features | Kohler Illumination Aspheric Collector Halogen 100W |
| Light Source Type | Halogen |
| Power Supply Type | AC 110V-240V |
