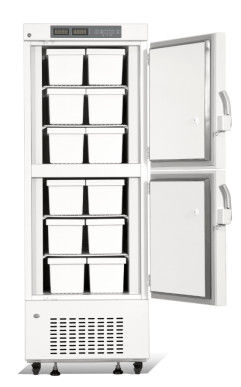

Medical Supplies Vertical Deep Freezer 358L -40 Degree Cold Storage YR05309

Manufacturer: Kalstein

Description

  • Multiple malfunction alarms :high and low temperature , sensor error, power off, temperature controller malfunction, door ajar alarms.
  • Alarm indications: audible buzzing alarm and visual flashing light alarm
  • Corrosion proof cabinet interior design
  • Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage
Reliability
  • Optimized refrigeration system designed to maximize cooling effect and temperature uniformity
  • LED digital display for clear observation,
  • Wide voltage tolerance design with applicable voltage range of 187-242V/AC
Perfect Design
  • USB data logging and temperature recorder (optional).
  • Build-in lock with safety and beauty
  • Lockable caster design for customer to move as needed
Key Features
  • Microprocessor control, adjustable temperature range: -10CºC to -25ºC
  • LED digital display and increment at 0.1ºC
  • Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance
  • High density CFC-Free urethane foam insulation.
Technical Specifications
Model YR05309
Details Shelf/drawer Shelves/12 drawers
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Energy consumption(kWh/24h) 5.5
Noise(db) 49
Ambient temperature(℃) 10~32℃
Temperature range(℃) -20~-40℃
Cooling system Compressor brand/QTY CUBIGEL/2
Condenser Wire tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Systerm Voltage/frequency(V/Hz) 220/50Hz
Power(W) 310W
Current(A) 3
Material Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Dimension Capacity(L/cu.ft) 358/12.6
NT./GT.(kg) 138/178
Exterior size(W*D*H)(mm) 720×830×1870
Interior size(W*D*H)(mm) 466×636×625
Package size(W*D*H)(mm) 780×920×1990
CBM 1.43
20GP/40GP/40HQ 18/39/39
Alarm Systerm High/low temperature Y
Power failure Y
Sensor error Y
Filter check /
Temperature controller failure Y
Low battery /
Condenser clean /
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm) 8H
Accessories Foot Y
Castor Y
Inside door 12DRAWERS
Test hole QTY/diameter Y
USB port Y
Remote alarm port Optional

Additional information

Weight 178 kg
