Low speed centrifuge YR124-1

Manufacturer: Kalstein

Description

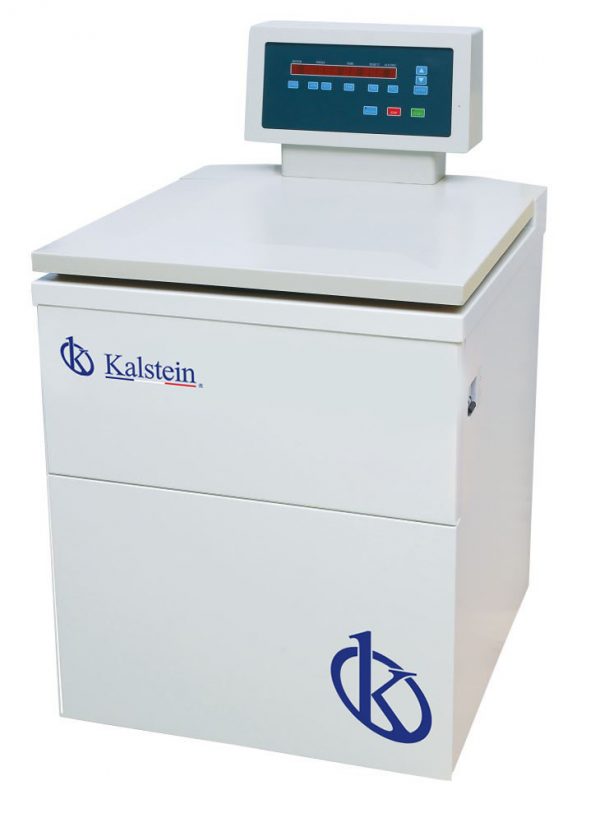

The YR124-1 Low-Speed Centrifuge is a versatile and advanced tool designed to meet the highest laboratory standards. With a maximum speed of 5,000 r/min and a relative centrifugal force (RCF) of up to 3,660 x g, this equipment is ideal for applications such as water treatment, biopharmaceuticals, and blood component separation. Its microprocessor technology, combined with a high-torque, frequency-conversion motor, ensures stable operation and extends its lifespan by preventing carbon contamination. Additionally, its touch panel and LED display allow users to freely program speed, time, and RCF, adapting to each user’s specific needs.

Market Price

The YR124-1 Low-Speed Centrifuge is available at a competitive price, ranging between $2,860 and $2,900 USD, depending on the supplier and additional configurations. This competitive pricing, combined with its high quality and durability, makes the YR124-1 a solid investment for laboratories and clinics looking to optimize processes without compromising their budget.

Frequently Asked Questions

  • Is it suitable for handling large sample volumes?
    Yes, with a maximum capacity of 4 x 750 ml, the YR124-1 is ideal for laboratories that need to process large sample volumes efficiently.
  • What safety features are included?
    This model includes overspeed protection, automatic diagnostics, and a locking system, ensuring safe operation with each use.

Advantages and Disadvantages

Notable advantages of the YR124-1 include its broad range of acceleration and deceleration options, with 9 acceleration profiles and 10 deceleration profiles, offering full control over the centrifugation process. Its robust design and self-diagnostic system make it a reliable option for high-performance applications. However, its net weight of 110 kg may require assistance for installation, which could be a drawback for laboratories with space or personnel limitations.

Field Use

The YR124-1 Low-Speed Centrifuge is widely used in clinical, biochemical, and research laboratories where high-precision results are required for sample separation. Its range of rotors, supports, and adapters makes it ideal for specific applications such as blood component purification and water treatment. Thanks to its optimized design and advanced technology

Technical Specifications

Model YR124-1
Maximum speed 5,000r/min
RCF Max 3 660 x g
Maximum capacity 4 x 750ml
speed acceleration ±10r/min
Adjustment Range 1min to 99min
Noise <65dB(A)
Power supply AC 220V±22V 50/60Hz 10A
Power 1 100w
Dimension (W×D×H) 590 x 710 x 1140 (mm)
Package Size 790 x 910 x 1420 (mm)
Net weight 110Kg





Additional information

Modelo

(YR124-1) Pantalla LED

Rotor

(YR124-1-1) Rotor Oscilante – Velocidad Máxima R / MIN 4000 – MAX RCF 3780 – Capacidad (ml) 7ml×148, (YR124-2) Rotor de Ángulo – Velocidad Máxima R / MIN 5000 – MAX RCF 3780 – Capacidad (ml) 50mlx6, (YR124-3-1) Rotor Oscilante – Velocidad Máxima R / MIN 5000 – MAX RCF 3780 – Capacidad (ml) 750mlx4, (YR124-3-2) Rotor Oscilante – Velocidad Máxima R / MIN 5000 – MAX RCF 3780 – Capacidad (ml) 500mlx4, (YR124-4) Rotor Oscilante de Microplacas – Velocidad Máxima R / MIN 5000 – MAX RCF 2200 – Capacidad (ml) 8×96well, (YR124-5-1) Rotor Oscilante – Velocidad Máxima R / MIN 4000 – MAX RCF 3780 – Capacidad (ml) 7ml×96, (YR124-5) Rotor Oscilante de Microplacas con Cesta – Velocidad Máxima R / MIN 4000 – MAX RCF 3040 – Capacidad (ml) 4×2×96well

Adaptadores

Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3040 – Capacidad (ml) 1.5ml×25×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3040 – Capacidad (ml) 10ml×20×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3040 – Capacidad (ml) 15ml×10×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3040 – Capacidad (ml) 50ml×4×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3040 – Capacidad (ml) 5ml×28×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 1.5ml×24×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 100ml×2×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 100ml×3×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 10ml×15×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 10ml×20×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 15ml×14×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 15ml×8×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 20ml×12×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 20ml×9×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 250ml×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 300ml×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 500ml×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 50ml×5×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 5ml/7ml×20×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 5ml/7ml×24×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 5ml/7ml×37×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3040 – Capacidad (ml) 1.5ml×20×4, Adaptador – Velocidad Maxima r/min 4000 – RCF Maximo 3780 – Capacidad (ml) 1.5ml×20×4
