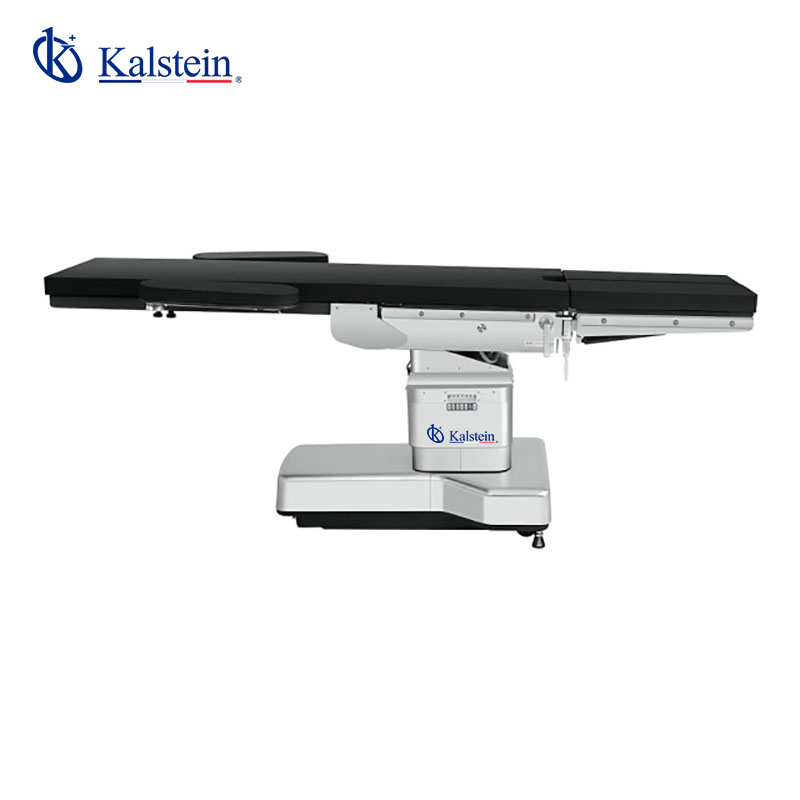

Electro Hydraulic Operating Table YR06236

ManufacturerKalstein

Description

  • The backboard of the table is made of metal-free carbon fiber board, and the n be moved longitudinally to meet the needs of 3D and orthopedic navigation systems for 360*X-ray photography.
  • The mattress is made of imported artificial leather wrapped with high-density memory foam and formed at one time with no seam.
  • There are two control modes: hand-held remote controller and bed controller, with self-locking function.
  • The complete hydraulic system adopts the German HOERBIGER system.
  • AC and DC CPU control, with one-key reset function.
  • The countertop support frame. rails on both sides and accessories are all made of high-quality 304 stainless steel.
Technical Specifications
Model YR06236
Length 2290±100mm
Width 520±20mm
Height Adjustment (750~1150)±30mm
Tilt(left)/Tilt(right) ≥15°/≥15°
Trendelenburg/Rev-Trend ≥20°l≥25°
Head board upwards ≥45°
Head board downwards ≥90°
Back board upwards ≥70°
Backboard downwards ≥25°
Waist board lifting 100+20mm
Leg board Upwards ≥10°
Leg board Downwards ≥90°
Leg board Outwards Lumbar upper coner ≥180 ≤150°
Lumbar lower cornerv ≤120°
Horizontal and longitudinal movement 350±30mm
Main Voltage AC 220V+22V,50+1Hz
Input power VA 500+10%

Additional information

Weight 358 kg
