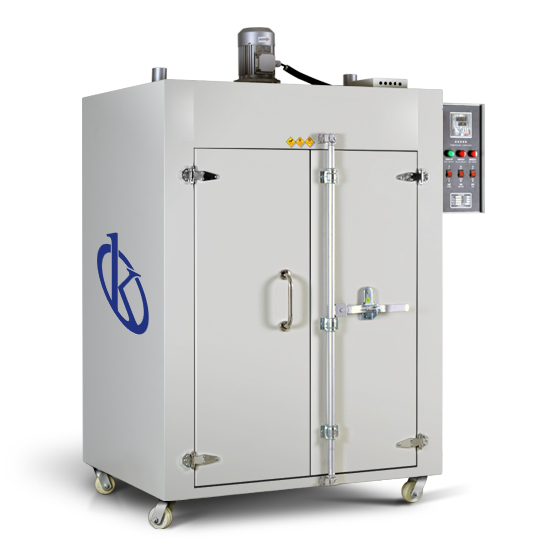

Double Door Industrial Air Drying Oven YR05257-1 // YR05259-1

Manufacturer: Kalstein

Description

Double layer door; Microcomputer intelligent temperature control, digital display; centrifugal wind wheel, heat flow evenly; large studio space, fast heating time; (can be equipped with explosion-proof locks, explosion doors). Used for dehydration and drying of the product, suitable for industries, mining enterprises, workshop batch production can be a long time uninterrupted operation. Widely used in electroplating industry, electronic industry, alloy jewelry drops of oil, food and plastic industry, leather industry and hardware industry, etc. is not suitable for flammable and explosive materials processing.

Product introduction

For dewatering, drying, producing industries such as electroplating industry, electronic industry, alloy jewelry drip, food and plastics industry, leather industry, hardware and other applications, but not for the strong volatile, flammable and explosive items in order to avoid explosion. (If the explosion-proof requirements, you must install safety facilities, such as explosion-proof lock and blast doors)

Features
  • According to the box size single door or double door design. Large diameter centrifugal wind wheel. Uniform heat circulation.
  • The shell is made of high quality cold-rolled steel with metallic paint spray. Nice overall color design. suitable for all workshop production.
  • Digital display intelligent temperature controller with microcomputer intelligent PID control and timing function.
  • Large diameter centrifugal wind wheel. uniform heat circulation.
  • Two models material inner chamber: mirror stainless steel and zinc-plating.
  • This series product with the feature of large storage and temperature rising is fast.
  • YR05256 for the smaller product baking such as baked paint for toys hardware part.
Technical Specifications
Model YR05257-1 YR05259-1
Supply voltage 380
Temp. Rang(℃) RT+5~250
Timer Range 0~999h
Temp. Accuracy ±1
Temp. Fluctuation(%) ±2
Chamber Material Zinc stainless steel
Liters 864
Power (KW) 8~12
Inner Size (mm) (H×W×D) 1200×900×800
External Size(mm) (H×W×D) 2000×1450×1000
Net. Weight (KG) 214
Shipping Weight (KG) 221

Additional information

Weight N/A
Model

YR05257, YR05259
