Benchtop Spectrophotometer YR05476

ManufacturerKalstein

Description

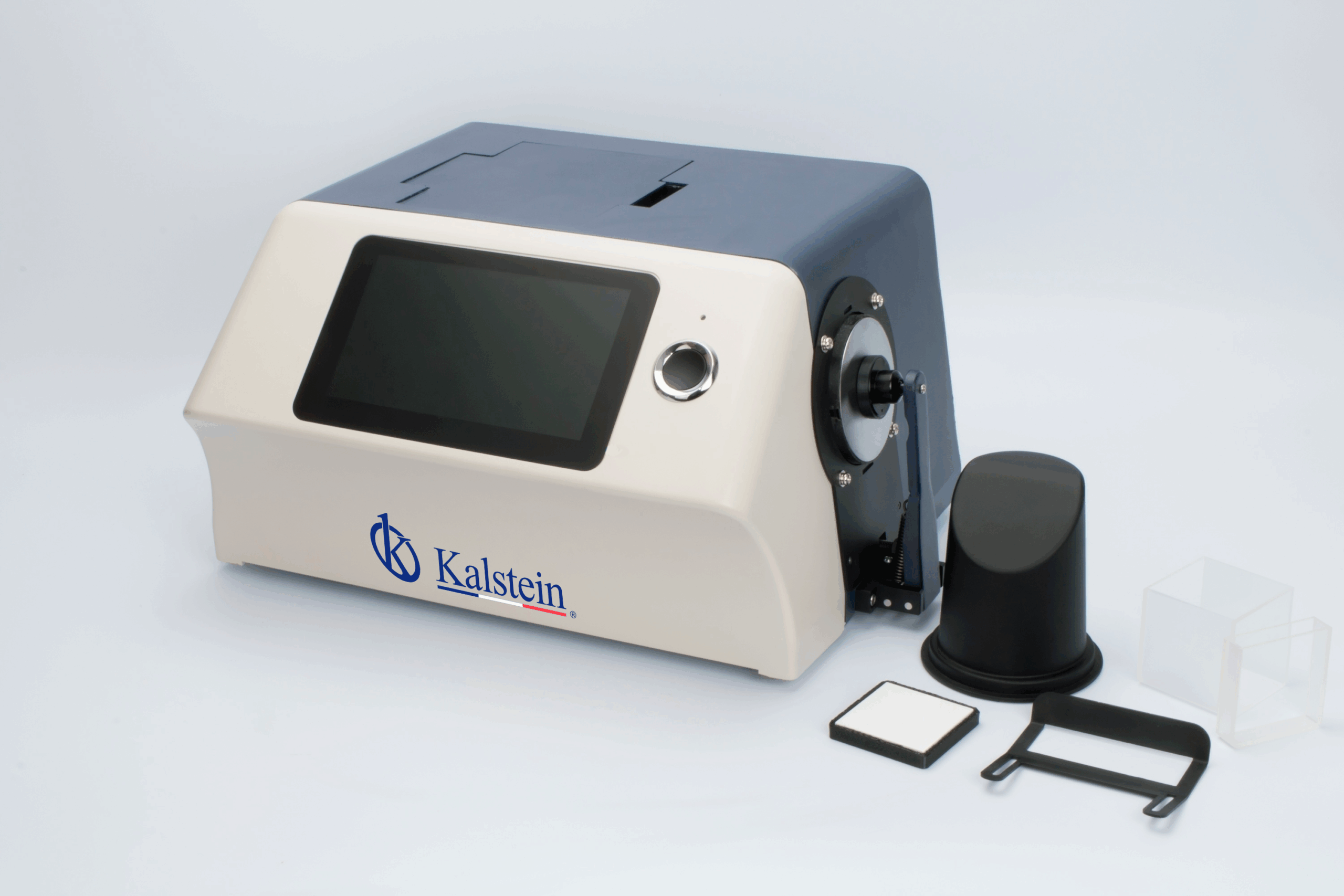

The YR05476 Desktop Spectrophotometer is a precision instrument developed by Kalstein, ideal for color and appearance measurement in various laboratory and industrial applications. This compact and advanced device features a 7-inch TFT touch screen, making it easy to use and providing an intuitive user experience. Its reflective d/8 and transmissive d/0 optical geometry enables measurements on reflective objects as well as on liquids and translucent or transparent solids, with LED and UV lighting options. Its dual-array 256-element CMOS sensor and concave grating ensure stable and reliable results, while its storage capacity of up to 40,000 records makes it perfect for demanding quality control and color transfer in sectors such as plastics, textiles, paints, cosmetics, and more.

Market Price

The YR05476 spectrophotometer is competitively priced, ranging from $13,390 to $13,400 USD, making it a key investment for companies that require precision and stability in color analysis and quality control. This price makes it an accessible alternative compared to other high-end products on the market. For a personalized quote tailored to the specific needs of your industry, visit the Kalstein Plus platform where you can request a no-obligation quote quickly and easily.

Frequently Asked Questions

  • Is the YR05476 suitable for both translucent and opaque samples?
    Yes, this spectrophotometer is designed to measure both opaque and translucent materials, including liquids and transparent solids.
  • What is the storage capacity?
    This model allows storage of up to 40,000 test results, facilitating detailed analysis and tracking of measurement history.
  • Is it possible to adjust the measurement aperture?
    Yes, the YR05476 features adjustable apertures, allowing selection among sizes of φ25.4 mm, 15 mm, 8 mm, and 4 mm, to adapt to different needs.

Advantages and Disadvantages

The YR05476 stands out for its ability to perform high-precision measurements in different color spaces, its temperature compensation system, and its ergonomic design that facilitates continuous use. A potential drawback is that it may require periodic calibration in high-use environments to maintain optimal accuracy.

Field Use

This spectrophotometer is ideal for use in high-demand industries such as automotive, cosmetics, medical, and food, where controlling the appearance and color of products is essential. Its ability to measure both reflectance and transmittance in a variety of materials makes the YR05476 an essential tool for quality control and product development laboratories, optimizing the verification process and ensuring that quality standards are met at every stage.

Recommendations

To maximize the performance of the YR05476, periodic calibration and keeping the device in a clean and stable environment are recommended. Adjusting the measurement aperture according to the type of sample and testing conditions is crucial for achieving greater accuracy and consistency in results. Request your personalized quote now through Kalstein Plus and discover how the YR05476 Desktop Spectrophotometer can transform your quality control and color transfer processes, providing precise and reliable measurements in every application.

Specifications

Model YR05476
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) SCI (specular component included)/SCE (specular component excluded)   Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing)SCI (specular component included)/SCE (specular component excluded) Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Application It is used for accurate analysis and transmission of laboratory color.     Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ154mm
Light Source 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nmCut-off light source
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360-780nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;
Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position
Specular Component Reflectance: SCI&SCE  / Transmittance: SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE (Hunter),
Other Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 2.4s (Measure SCI & SCE about 5s)
Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)                                                                                        Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.12
(Average for 12 BCRA Series II color tiles)
Dimension L*W*H=370x300x200mm
Weight Approx. 9.6kg
Power AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB & Bluetooth & Print serial port
Data Storage Standard 5000 Pcs, Sample 40000 Pcs
Language Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional Accessory Micro-printer,  Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes:  The specifications are subject to change without notice.

Additional information

Weight 12,5 kg
