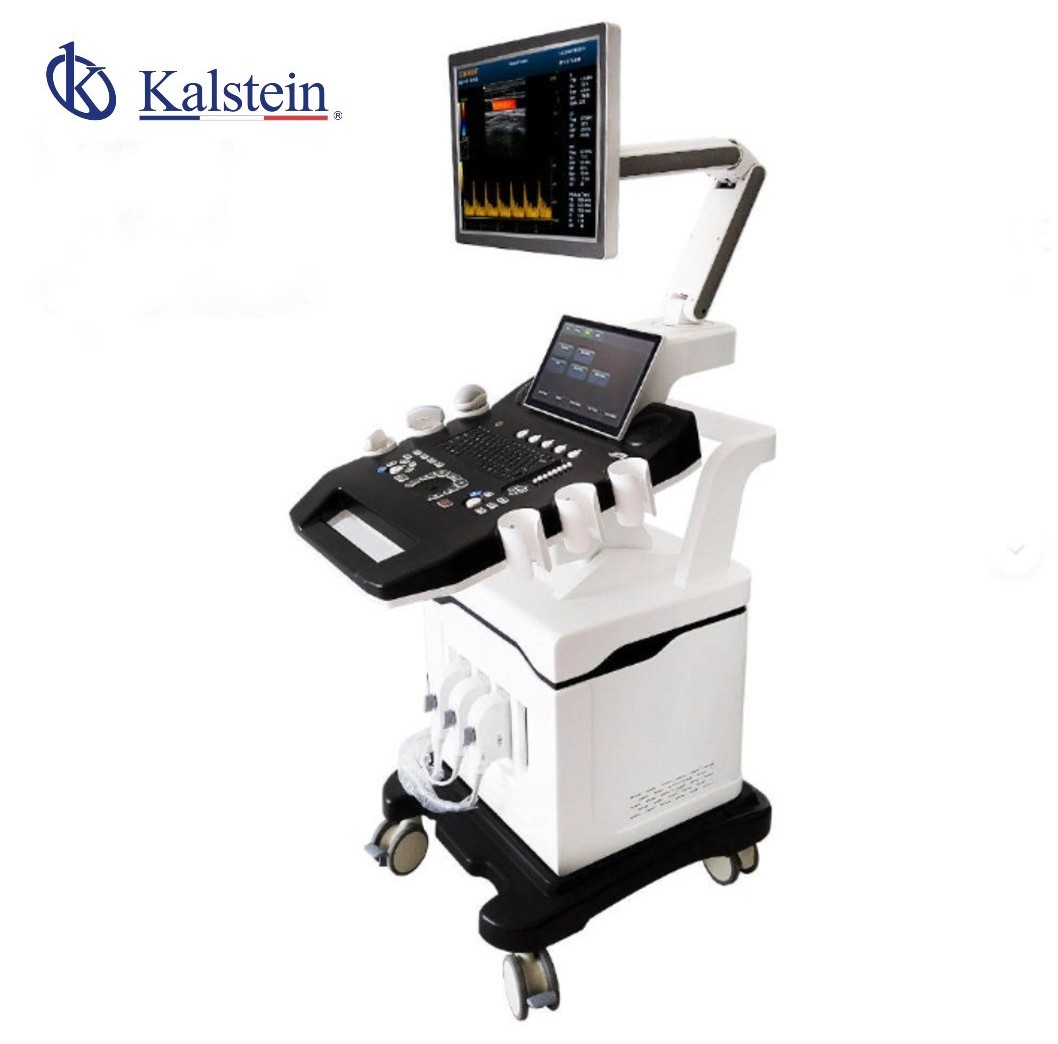

High-End 3D/4D Color Doppler Ultrasound Scanner YR06635: Customization, Optional Accessories, and Advanced Configurations
The YR06635 model represents a pinnacle in diagnostic imaging technology, integrating sophisticated 3D and 4D Doppler capabilities. Designed for modern medical and veterinary centers that require exceptional precision across various applications, this ultrasound scanner is pivotal for abdominal, cardiac, obstetric, and gynecological studies.
Understanding the YR06635: Key Features and Design
The YR06635 stands out due to its advanced technology and ergonomic design, which enhances usability while ensuring precise imaging. Here are some significant features:
- Connectivity Suite: The system is equipped with 4 active transducer ports and 4 USB ports, facilitating seamless probe switching and rapid data export.
- Image Processing: Utilizes multi-beam forming technology and fully digital signal processing to achieve high-resolution images with speckle reduction.
- Advanced Visualization: Features a 15-inch LED monitor with a 800:1 contrast ratio and ± 90 degrees tilt for ergonomic operation.
- Storage and Cine: Includes a 64GB SSD (expandable to 120GB/200GB) and cine memory of up to 1200 frames for detailed review.
- Tissue Technology: Incorporates Tissue Harmonic Imaging (THI) and dynamic tissue optimization for better differentiation of complex anatomical structures.
Technical Specifications of YR06635
| Feature | Specifications |
|---|---|
| Model | YR06635 |
| Monitor | 15-inch LED (1024 x 768) |
| Transducer Ports | 4 Active Ports |
| Storage | 64GB SSD (Optional 120GB/200GB) |
| USB Ports | 4 Ports |
| Cine Memory | 1200 frames |
| Image Formats | PNG, AVI, BMP, JPEG, DICOM |
| Image Modes | B, 2B, 4B, M, B/M, B/C, PW, CW, CFM, 4D |
| Connectivity | Ethernet (100Mb/1000Mb), VGA, HDMI, DICOM 3.0 |
| Beamformer Frequency | 1 to 40 MHz |
| Equipment Dimensions | 73 x 113 x 144 cm |
| Equipment Weight | 80 kg |
| Package Weight | 200 kg |
Customization Options and Accessories for YR06635
The YR06635 offers various customization features and optional accessories that enhance its functionality:
- Optional Probes: The scanner supports a wide range of probes, including convex matrix, linear matrix, intracavitary, micro-convex, cardiac, and specialized 4D volumetric probes.
- Software Upgrades: The scanner can be fitted with upgraded software for enhanced imaging modes and reporting capabilities.
- Advanced Operating Modes: Users can access premium modes such as Doppler imaging features and advanced tissue harmonic imaging settings to improve diagnostic accuracy.
- Training Programs: Specialized training programs for staff to utilize all features of the YR06635 effectively, ensuring maximum efficiency and productivity.
Advantages and Considerations of YR06635
While the YR06635 provides numerous benefits, understanding its advantages and considerations is crucial for potential users:
Key Advantages
- Total Versatility: Suitable for cardiology, urology, pediatrics, musculoskeletal imaging, and more.
- Comprehensive Imaging Modes: Offers B, M, Color PDI, PW, CW (Continuous Wave), and simultaneous duplex/triplex visualization.
- User-Friendly Interface: Windows-based interface with a backlit control panel and full-size QWERTY keyboard.
Considerations
- Significant Weight: Weighing 80 kg, it requires a stable surface or its transport system.
- Learning Curve: The high-end nature and multiple imaging modes may necessitate specialized training for staff.
Frequently Asked Questions
What types of probes does the YR06635 support?
The YR06635 supports a wide variety of probes including convex matrix, linear matrix, intracavitary, micro-convex, cardiac, and the specialized 4D volumetric probe.
Is the YR06635 compatible with hospital management systems?
Yes, it fully complies with DICOM 3.0 protocol, allowing easy printing and reporting transmission through medical networks.
Does the YR06635 have automated functions?
Yes, it includes automated measurements for IMT (Intima-Media Thickness) and automatic PW (pulsed wave) tracing to accelerate the diagnostic process.
What are the ideal environments for using the YR06635?
The YR06635 is best suited for high-complexity hospitals and specialized clinics focused on vascular diagnostics or advanced fetal monitoring.
What is the importance of the 4D mode in the YR06635?
The integrated 4D mode is essential for real-time volumetric reconstructions in obstetrics, enhancing fetal monitoring capabilities.
What are the recommended operational practices for the YR06635?
It’s advisable to use the built-in “online care” feature, which guides users on operational steps during examinations.
